| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,629 pcs
|
6629 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Active Imager Size | |
| Active Pixel Array | |
| Color Filter Array | |
| Frames per Second | |
| Maximum Data Rate / Pixel Clock | |
| Operating Temperature | |
| Optical Format | |
| Pixel Dynamic Range | |
| Pixel Size | |
| Power Consumption | |
| SNRMAX | |
| Shutter Type | |
| Supplier Device Package | |
| Supply Voltage (Digital) | |
| Supply Voltage - Analog | |
| Supply Voltage - I/O | |
| Type | |
| Voltage | |
| responsivity |

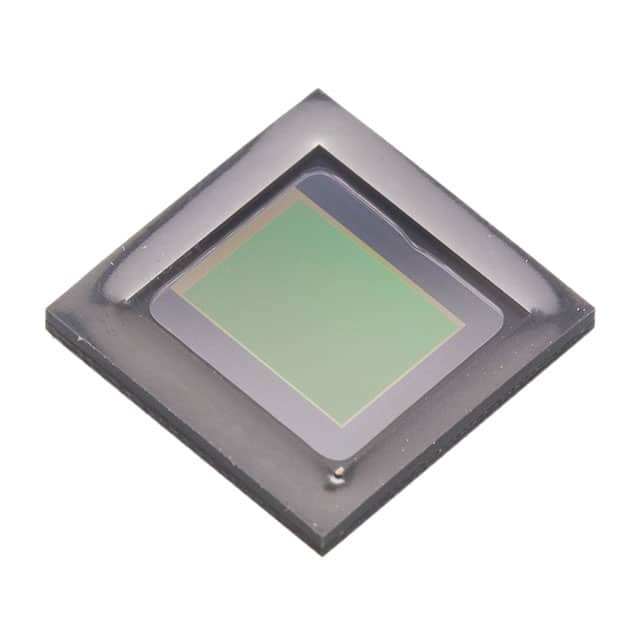

The ON Semiconductor MT9P031I12STC-DR is a 1/2.5-inch CMOS active-pixel digital image sensor with an active imaging pixel array of 2592 H x 1944 V. It incorporates sophisticated camera functions on-chip such as windowing, column and row skip mode, and snapshot mode, programmable through a simple two-wire serial interface.
This 5 Mp CMOS image sensor features ON Semiconductor's low-noise CMOS imaging technology, achieving CCD image quality while maintaining the inherent size, cost, and integration advantages of CMOS. Key performance parameters include a pixel size of 2.2 x 2.2 µm, 12-bit ADC resolution, and a maximum data rate of 96 Mp/s. It supports frame rates programmable up to 14 fps at full resolution and up to 53 fps for HDTV resolutions.
The sensor operates within a temperature range of -30°C to +70°C and is supplied in a 48-pin iLCC package. Its applications include high-resolution network cameras, wide FOV cameras, and hybrid video cameras with high-resolution stills.
Key features include high frame rate, superior low-light performance, low dark current, and global reset release. It also offers bulb exposure mode for arbitrary exposure times and snapshot mode to take frames on demand. Programmable controls include gain, frame rate, frame size, and exposure, with automatic black level calibration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The active pixel array is 2592H x 1944V.
The frame rate is programmable up to 53 fps for HDTV resolutions.
The pixel size is 2.2µm x 2.2µm.
The operating temperature range is -30°C to 70°C.
The device is supplied in a 48-iLCC (10x10) package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
