| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,520 pcs
|
4520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Clock Frequency | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |
This Micron Technology MT48LC16M16A2FG-7E:D is a 256Mbit Synchronous Dynamic Random-Access Memory (SDRAM) component. It features a memory organization of 16M x 16 and operates with a parallel interface.
The device supports a clock frequency of 133 MHz and offers an access time of 5.4 ns. It requires a single power supply voltage ranging from 3V to 3.6V, with a typical operating voltage of 3.3V. The operating temperature range for this component is 0°C to 70°C (TA).

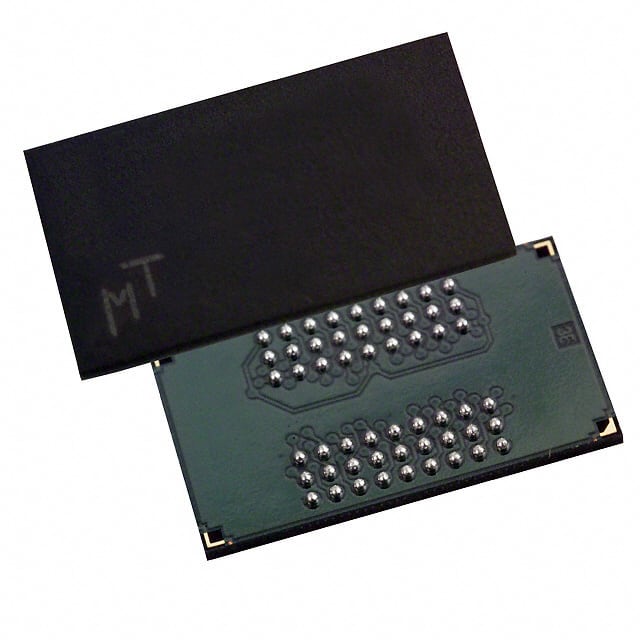

Designed for surface mount applications, this memory IC is housed in a 54-VFBGA (8x14) package. It is compliant with PC133 standards and features LVTTL-compatible inputs and outputs. The memory supports programmable burst lengths and includes auto precharge and auto refresh modes.
Key specifications include a write cycle time of 14ns and various cycle times depending on CAS latency, such as 6ns at CL=3 and 7.5ns at CL=2 or CL=3 for PC133 operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.3V (3.0V to 3.6V range).
It is available in a 54-VFBGA (8x14) package for surface mount.
The operating temperature range is 0°C to 70°C (TA).
The memory size is 256 Mbit, organized as 16M x 16.
The clock frequency is 133 MHz and the access time is 5.4 ns.
Yes, it is PC133 and PC100 compliant.
Programmable burst lengths: 1, 2, 4, 8, or full page.
