| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 1434 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Access Time | |
| Automotive Grade | |
| Clock Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |
The Micron Technology MT41K64M16JT-125:G is a high-density 1Gbit DDR3L Synchronous Dynamic Random-Access Memory (SDRAM) component. Designed for low voltage operation, it utilizes a VDD of 1.35V, with a compatible range of 1.283V to 1.45V, and is backward compatible with 1.5V ±0.075V.
This memory component offers a clock frequency of 800 MHz, providing a data rate suitable for various applications. It features a memory organization of 64M x 16, with a parallel memory interface and a volatile memory type. The access time is rated at 13.75 ns, and it supports DDR3L technology.

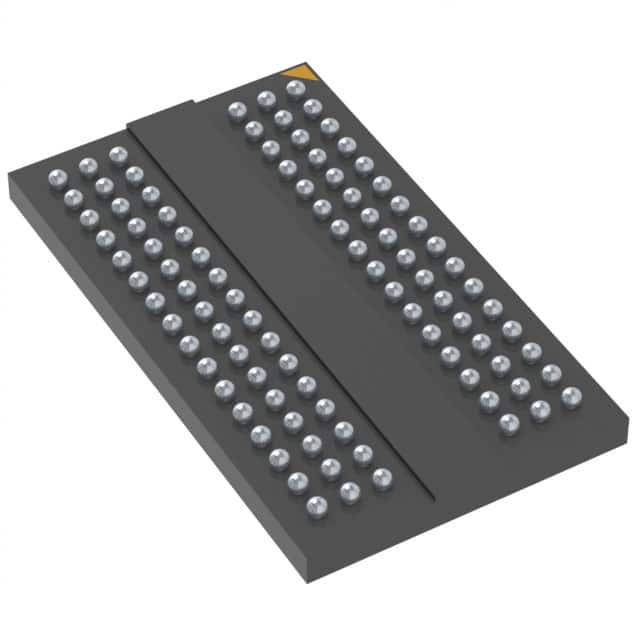

The MT41K64M16JT-125:G is housed in a 96-ball FBGA (Fine-Pitch Ball Grid Array) package, measuring 8mm x 14mm, and is designed for surface mount applications. It operates within a case temperature range of 0°C to 95°C. The component also includes features such as 8 internal banks, 8n-bit prefetch architecture, and programmable latencies.
Key specifications include a 1.35V operating voltage, 1Gbit memory size, and 800 MHz clock frequency. The 96-FBGA package is standard for this component, facilitating integration into compact electronic designs. Its DDR3L technology ensures efficient data transfer for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the MT41K64M16JT-125:G is 1.35V.
The memory size of the MT41K64M16JT-125:G is 1Gbit.
The clock frequency of the MT41K64M16JT-125:G is 800 MHz.
The MT41K64M16JT-125:G is supplied in a 96-TFBGA package.
The operating temperature range for the MT41K64M16JT-125:G is 0°C to 95°C (TC).
The MT41K64M16JT-125:G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MT41K64M16JT-125:G is 1 Unlimited.
