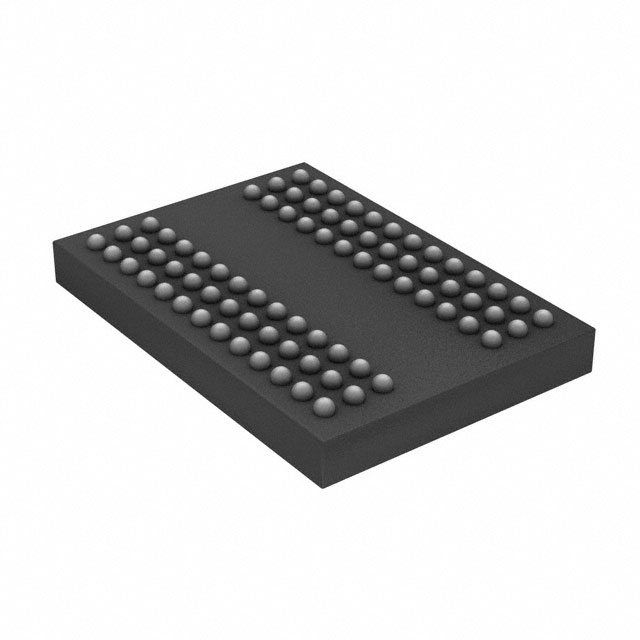

MT41J128M8JP-125:G The MT41J128M8JP-125:G is a 1Gb DDR3 SDRAM memory IC from Micron Technology, organized as 128M x 8 bits. It operates at 800MHz clock frequency with a 1.5V supply voltage and is housed in a 78-FBGA package.
Mfr Part #:

MT41J128M8JP-125:G

Available from 2 distributors
Mfr Name: Micron Technology
Micron Technology
The MT41J128M8JP-125:G is a 1Gb DDR3 SDRAM memory IC from Micron Technology, organized as 128M x 8 bits. It operates at 800MHz clock frequency with a 1.5V supply voltage and is housed in a 78-FBGA package.
✓ Total Stock: 14,040 pcs
$ Price Range: $1.28

MT41J128M8JP-125:G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
9,040 pcs
On Request
9040 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MT41J128M8JP-125:G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Operating Voltage
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

MT41J128M8JP-125:G Description

Short technical summary and product information.

The MT41J128M8JP-125:G is a 1Gb DDR3 SDRAM memory IC manufactured by Micron Technology. It features a 128M x 8 memory organization and operates at a clock frequency range of 300 MHz to 800 MHz. The device uses a 1.5V ±0.075V supply voltage and supports CAS latencies from 5 to 11 with a fixed burst length of 8. Refresh rates are 64ms at 0°C to 85°C and 32ms at 85°C to 95°C.



The memory is packaged in a 78-ball FBGA (8mm x 11.5mm) surface mount package, suitable for high-density PCB designs. It is designed for high-bandwidth memory subsystems in computing, networking, and embedded applications. The operating temperature range is 0°C to 95°C (case temperature).



This DDR3 SDRAM offers a balance of speed and power efficiency, making it appropriate for a wide range of memory-intensive applications. The parallel memory interface and standard DDR3 protocol ensure compatibility with existing memory controllers.

MT41J128M8JP-125:G Quick Information

Product Type: DDR3 SDRAM Memory IC
Canonical Name: Micron MT41J128M8JP-125:G DDR3 SDRAM 1Gb (128Mx8) 78-FBGA
Subcategory: DRAM

MT41J128M8JP-125:G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MT41J128M8JP-125:G Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MT41J128M8JP-125:G Features

  • 1Gb DDR3 SDRAM memory capacity.
  • 128M x 8 memory organization.
  • 800 MHz maximum clock frequency.
  • 1.5V operating voltage supply.
  • 78-ball FBGA surface mount package.

MT41J128M8JP-125:G Applications

  • Used in computing and networking systems.
  • Ideal for high-speed data processing.
  • Suitable for embedded memory applications.
  • Common in server and storage modules.

MT41J128M8JP-125:G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the MT41J128M8JP-125:G?

1.5V ±0.075V.

What package does the MT41J128M8JP-125:G come in?

78-ball FBGA (8mm x 11.5mm) surface mount package.

What is the operating temperature range?

0°C to 95°C (case temperature).

What is the memory size of this DDR3 SDRAM?

1 Gb (128M x 8).

What clock frequencies does this device support?

300 MHz to 800 MHz.

What CAS latencies are supported?

5, 6, 7, 8, 9, 10, or 11.

What is the refresh rate?

64ms at 0°C to 85°C, 32ms at 85°C to 95°C.
