Mfr Part #:

MT226024

Available from 1 distributors

Mfr Name: Schrack

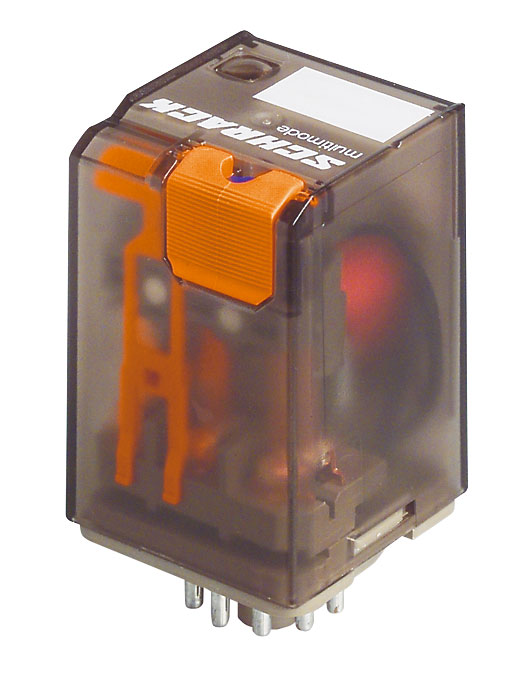

Power relay from Schrack with 2 or 3 changeover contacts. Rated for 10A at 240VAC with AgNi 90/10 contacts.

✓ Total Stock: 17 pcs

$ Price Range: $0.52

MT226024 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	17 pcs On Request	17 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MT226024 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Schrack
Contact Material	AgNi 90/10
Contact Type	Single Kontakt
SVHC Present	Not Present

View Similar Products (0)

MT226024 Description

Short technical summary and product information.

The Schrack MT226024 is an electromechanical power relay designed for general-purpose switching applications. It is available with either 2 or 3 changeover (C/O) contacts, and the contact material can be AgNi 90/10 or AgNi 90/10 gold-plated, depending on the variant selected. The relay has a nominal current rating of 10A or 4A at a nominal voltage of 240 VAC, with a maximum switching voltage of 400 VAC and a maximum switching power up to 2500 VA (resistive load).

Dielectric strength is specified as 1500 Vrms between open contacts, and 2500 Vrms between contact and coil as well as between adjacent contacts. The insulation resistance (creepage/clearance distances) is at least 2.8 mm (clearance) and 4 mm (creepage). Contact ratings per IEC 61810 include 10A at 250VAC (cos φ=1) for both 2C/O and 3C/O variants, and 4A at 25VAC for fork contacts. The relay is suitable for use in control panels, industrial machinery, and building automation systems where reliable switching of AC loads is required.

MT226024 Quick Information

Product Type: Power Relay

Canonical Name: Schrack MT226024 Power Relay

Subcategory: Power Relay

MT226024 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MT226024 Estimated Pricing

Qty	Low	High
1+	$0.52	$0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

MT226024 Features

Available with 2 or 3 changeover contacts.
AgNi 90/10 contact material (standard or gold-plated).
Rated for 10A or 4A at 240VAC nominal voltage.
Maximum switching power of 2500 VA (AC).
Dielectric strength of 2500 Vrms between coil and contacts.

MT226024 Applications

Suitable for industrial control circuits.
Used in HVAC system switching.
Ideal for power supply sequencing.
Applicable in building automation systems.

MT226024 FAQs

6 frequently asked questions generated from this part’s specifications.

What contact configurations are available for the Schrack MT226024?

The MT226024 is available with either 2 C/O or 3 C/O (changeover) contacts.

What contact materials are offered?

Contacts are available in AgNi 90/10 or AgNi 90/10 gold-plated (vergoldet).

What are the nominal current and voltage ratings?

Nominal current is 10A or 4A, and nominal voltage is 240 VAC.

What is the maximum switching voltage and power?

Maximum switching voltage is 400 VAC, and maximum switching power is 2500 VA (with a second rating of 500 VA depending on configuration).

What are the dielectric strength ratings?

Dielectric strength is 1500 Vrms between open contacts, 2500 Vrms between contact and coil, and 2500 Vrms between adjacent contacts.

What is the insulation resistance or creepage distance?

The minimum clearance/creepage distance is ≥2.8 mm for clearance and ≥4 mm for creepage.
