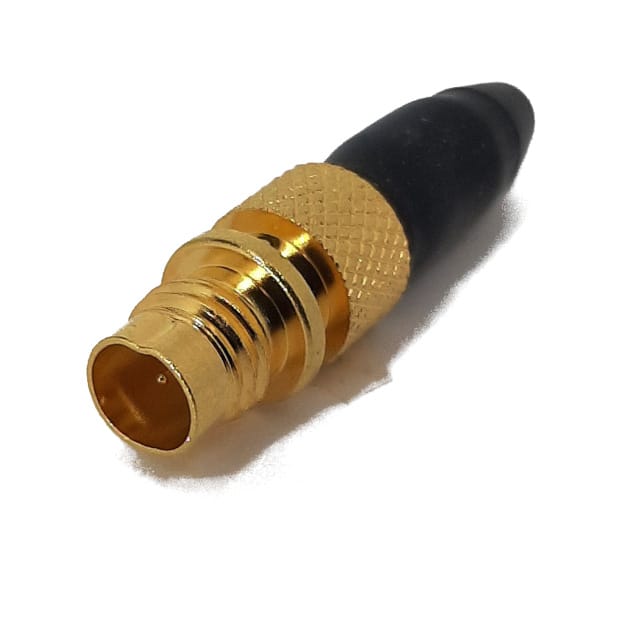

MSW-G-R-04P MSW-G-R-04P is a 4 position in-line receptacle from Milspecwest, LLC with gold plated brass shell and solder cup termination.
Mfr Part #:

MSW-G-R-04P

Available from 1 distributors
Mfr Name: Milspecwest, LLC
Milspecwest, LLC
MSW-G-R-04P is a 4 position in-line receptacle from Milspecwest, LLC with gold plated brass shell and solder cup termination.
✓ Total Stock: 3 pcs
$ Price Range: $32.05 - $39.09

MSW-G-R-04P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MSW-G-R-04P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Contact Material
Current Rating (Amps)
Fastening Type
Lead Style
Military Grade
Mounting Type
Number of Positions
Orientation
Primary Material
Shell Finish
Shell Material
Shielding
Termination
Voltage Rating
View Similar Products (0)

MSW-G-R-04P Description

Short technical summary and product information.

The MSW-G-R-04P is a micro in-line receptacle from Milspecwest, LLC, part of the MSW-R series. It features a 4 position layout with male pins and a threaded fastening mechanism for secure mating. The connector is free hanging (in-line) and uses solder cup termination for wire attachment.



The shell is made of brass with a gold finish over electroless nickel per MIL-G-45204. The insert is glass filled PEEK per MIL-P-46183, and contacts are copper alloy with gold finish. The connector is keyed for orientation and is unshielded. It is rated for 3 A current and 400 V voltage.

MSW-G-R-04P Quick Information

Product Type: Circular Connector Assembly
Series: MSW-R
Canonical Name: MSW-G-R-04P Micro In-Line Receptacle, 4 Position, Gold Plated
Subcategory: In-Line Receptacle

MSW-G-R-04P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

MSW-G-R-04P Estimated Pricing

Qty Low High
1+ $39.09 $39.09
10+ $36.74 $36.74
25+ $34.40 $34.40
100+ $32.05 $32.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

MSW-G-R-04P Features

  • 4 position in-line receptacle with male pins.
  • Gold plated brass shell and contacts.
  • Threaded coupling for secure connection.
  • Rated for 3 A and 400 V operation.
  • Solder cup termination for wire attachment.

MSW-G-R-04P Applications

  • Suitable for military and aerospace interconnect systems.
  • Used in harsh environment cable assemblies.
  • Ideal for applications requiring threaded coupling.

MSW-G-R-04P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of MSW-G-R-04P?

Receptacle, Male Pins.

How many positions does MSW-G-R-04P have?

4 positions.

What is the mounting type of MSW-G-R-04P?

Free Hanging (In-Line).

What is the current rating of MSW-G-R-04P?

3 A.

What is the voltage rating of MSW-G-R-04P?

400 V.

What termination method does MSW-G-R-04P use?

Solder Cup.

What is the shell material and finish of MSW-G-R-04P?

Brass shell with gold finish over electroless nickel per MIL-G-45204.
