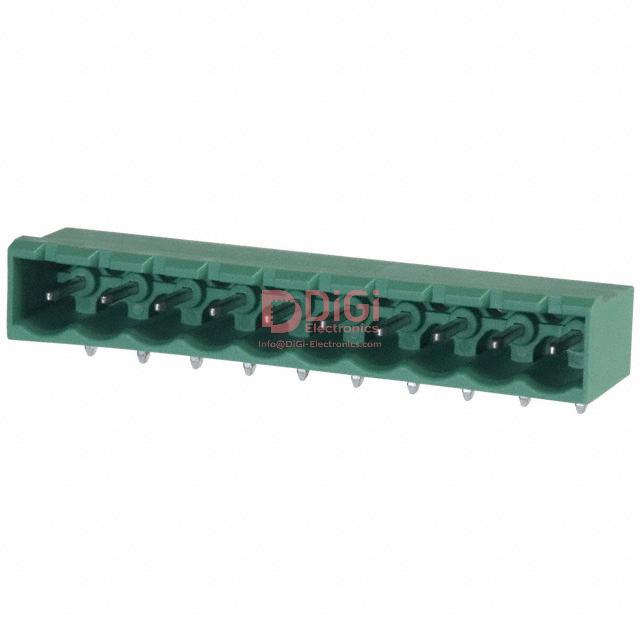

MSTBA2,5/10-G This Phoenix Contact MSTBA2,5/10-G is a 10-position terminal block header with a 5mm pitch and right-angle orientation. It features a through-hole mounting type and solder termination.
Mfr Part #:

MSTBA2,5/10-G

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact MSTBA2,5/10-G is a 10-position terminal block header with a 5mm pitch and right-angle orientation. It features a through-hole mounting type and solder termination.
✓ Total Stock: 10 pcs
$ Price Range: $1.00

MSTBA2,5/10-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MSTBA2,5/10-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
View Similar Products (0)

MSTBA2,5/10-G Description

Short technical summary and product information.

The Phoenix Contact MSTBA2,5/10-G is a terminal block header designed for robust electrical connections. It offers 10 positions with a standard pitch of 5.00mm, suitable for various wiring applications.



This header features a 90° right-angle orientation and a through-hole mounting type, facilitating easy integration onto printed circuit boards. The termination style is solder, ensuring secure and reliable connections. It is rated for 12A at 400V (IEC) and 15A at 300V (UL).



The component is classified under the COMBICON MSTBA series and is presented in bulk packaging. Its male pins are shrouded on four sides for protection and ease of handling during assembly.

MSTBA2,5/10-G Quick Information

Product Type: Terminal Block Header
Series: MSTBA
Canonical Name: Phoenix Contact MSTBA2,5/10-G Terminal Block Header
Subcategory: Headers, Plugs and Sockets

MSTBA2,5/10-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MSTBA2,5/10-G Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MSTBA2,5/10-G Features

  • 10 position terminal block header.
  • 5mm pitch for efficient wiring.
  • 90° right-angle orientation.
  • Through-hole mounting type.
  • Rated for 12A at 400V (IEC).

MSTBA2,5/10-G Applications

  • Ideal for PCB power connections.
  • Suitable for industrial automation.
  • Used in control system wiring.
  • Applicable for signal routing.

MSTBA2,5/10-G FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MSTBA2,5/10-G have?

10 positions.

What is the pitch of the MSTBA2,5/10-G?

5.00 mm.

What is the current rating of the MSTBA2,5/10-G?

12 A (IEC) and 15 A (UL).

What is the voltage rating of the MSTBA2,5/10-G?

400 V (IEC) and 300 V (UL).

What is the mounting type of the MSTBA2,5/10-G?

Through hole.

What is the header orientation of the MSTBA2,5/10-G?

90°, right angle.

What is the termination style of the MSTBA2,5/10-G?

Solder.
