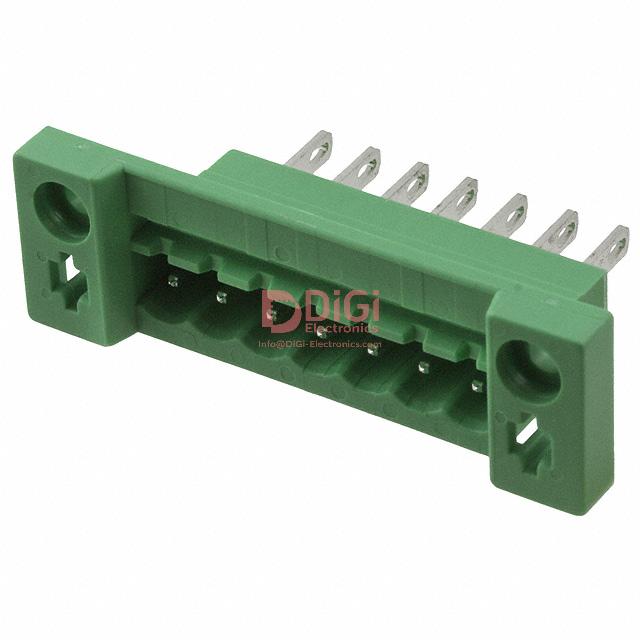

MSTB2,5/7-G-5,08 This Phoenix Contact terminal block header features 7 positions and male pins for front panel connections. It is designed for screw mounting with a front flange.
Mfr Part #:

MSTB2,5/7-G-5,08

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact terminal block header features 7 positions and male pins for front panel connections. It is designed for screw mounting with a front flange.
✓ Total Stock: 100 pcs
$ Price Range: $0.23

MSTB2,5/7-G-5,08 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MSTB2,5/7-G-5,08 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Lead Style
Number of Levels
Panel Thickness
Pitch
Positions Per Level
Width
View Similar Products (0)

MSTB2,5/7-G-5,08 Description

Short technical summary and product information.

The Phoenix Contact 0707293 is a terminal block header from the COMBICON DFK-MSTB series, designed for robust connections in various applications. It offers 7 positions per level with a 5.08mm pitch, suitable for front panel wire connections via male pins.



This header supports a voltage rating of 300V and a current rating of 15A (UL). The mechanical specifications include a width of 55.88mm and support for panel thicknesses ranging from 0.5mm to 4.0mm. It is designed for screw mounting with a front flange, providing a secure installation.



The rear panel wire connection utilizes quick connect terminals (2.80mm) and solder eyelets. The component is green in color and operates as a single-level header. Its bulk packaging makes it suitable for high-volume manufacturing processes.

MSTB2,5/7-G-5,08 Quick Information

Product Type: Terminal Block Header
Series: MSTB 2,5
Canonical Name: Phoenix Contact 7 Position Terminal Block Header, Male Pins Green
Subcategory: Headers, Plugs and Sockets

MSTB2,5/7-G-5,08 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MSTB2,5/7-G-5,08 Estimated Pricing

Qty Low High
1+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

MSTB2,5/7-G-5,08 Features

  • 7 positions for versatile connections.
  • Rated for 15A and 300V UL.
  • Male pins for front panel connection.
  • Screw mount with front flange.
  • Bulk packaging for efficient use.

MSTB2,5/7-G-5,08 Applications

  • Ideal for industrial control panels.
  • Suitable for power distribution units.
  • Used in equipment manufacturing.
  • Applicable for signal routing.

MSTB2,5/7-G-5,08 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block header have?

It has 7 positions on a single level.

What is the pitch of the MSTB2,5/7-G-5,08?

The pitch is 5.08 mm.

What is the current rating of this header?

The current rating is 15 A (UL).

What is the voltage rating of this header?

The voltage rating is 300 V (UL).

What mounting type does this terminal block header use?

It uses a screw mount front flange.

What panel thickness range does this header support?

It supports panel thicknesses from 0.5 mm to 4.0 mm.

What rear panel connection options are available?

Rear connections can be quick connect (0.110" / 2.80 mm) or solder eyelet.
