| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
515 pcs
|
515 pcs | On Request | 1 | On Request | On Request | 2000 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Case Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Rating | |
| Contact Timing | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| Features | |
| Initial Contact Resistance | |
| Insulation Resistance | |
| Life Expectancy | |
| Mounting Type | |
| Operating Temperature | |
| Plunger/Actuator Travel | |
| Storage Temperature | |
| Switch Function | |
| Terminal Seal | |
| Terminals | |
| Termination Style | |
| Voltage Rating |

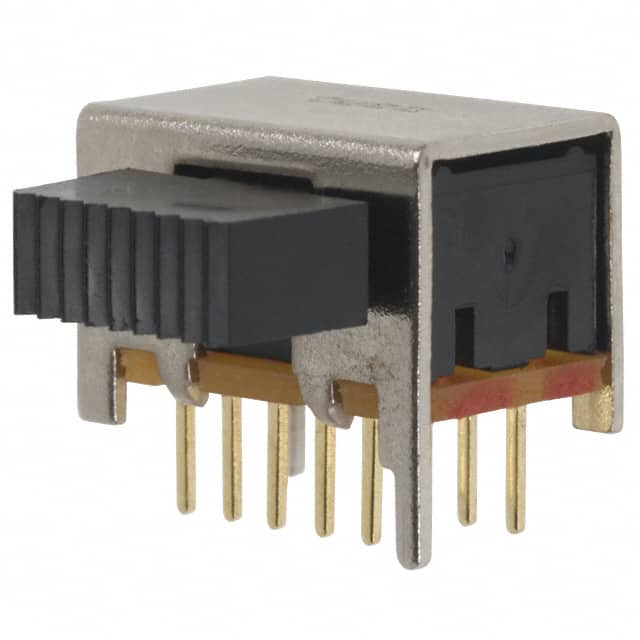

The TE Connectivity MSS4200RG is a vertical slide switch from the TSS series, designed for reliable operation in various applications. This switch features a 4PDT (4 Pole, Double Throw) circuit configuration, offering versatile control options.
Key electrical specifications include a contact rating of 0.4VA at 20VDC or peak AC, with gold-plated copper alloy contacts for enhanced conductivity and durability. The initial contact resistance is a maximum of 20 milliohms, and the insulation resistance is a minimum of 1,000 megohms at 500 VDC. The dielectric strength is rated at 1,000 Volts RMS at sea level.
This slide switch has a standard actuator type and a non-shorting contact timing. The terminals are PC pin style for through-hole mounting, specifically designed for right-angle placement. The case and actuator materials are high-temperature polyester, with epoxy-sealed terminals for added protection. The operating temperature range is -20°C to +80°C, and it has a life expectancy of up to 60,000-80,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4 VA maximum at 20 VDC or peak AC.
The operating temperature range is -20°C to +80°C.
It supports through-hole, right-angle mounting.
The circuit configuration is 4PDT (4 Pole, Double Throw).
The voltage rating is 20 V.
