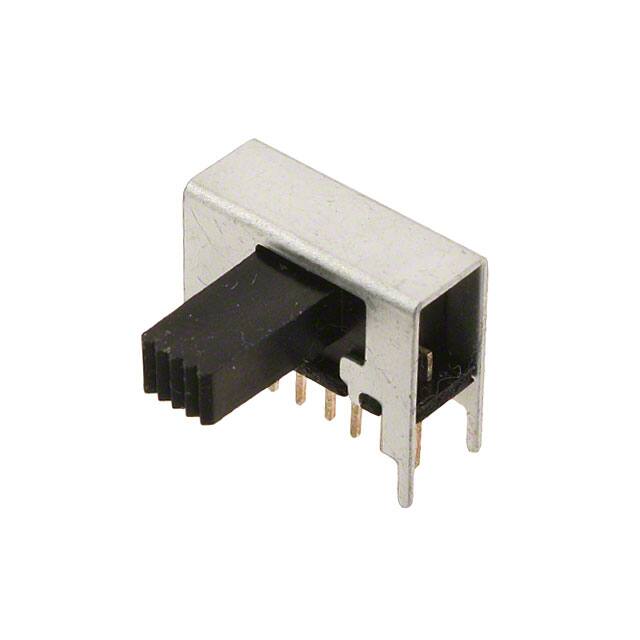

MSS225R The APEM Inc. MSS225R is a DPDT slide switch designed for 125V and 300mA applications. It features a standard actuator and epoxy sealed terminals.
Mfr Part #:

MSS225R

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. MSS225R is a DPDT slide switch designed for 125V and 300mA applications. It features a standard actuator and epoxy sealed terminals.
✓ Total Stock: 4 pcs
$ Price Range: $0.75

MSS225R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MSS225R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Timing
Current Rating (Amps)
Features
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

MSS225R Description

Short technical summary and product information.

The APEM Inc. MSS225R is a DPDT slide switch with a standard actuator and epoxy sealed terminals. It is rated for 125V and 300mA current, making it suitable for various switching applications.



This switch features a through-hole, right-angle mounting type with a PC pin termination style. The operating temperature range is from -10°C to 60°C. The actuator length is 9.50mm.



It is classified under the Slide Switches category and is manufactured by APEM Inc. The part number is MSS225R, with an alias of 679-1898-ND.

MSS225R Quick Information

Product Type: Slide Switch
Canonical Name: APEM Inc. MSS225R DPDT Slide Switch
Subcategory: Slide Switch

MSS225R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MSS225R Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MSS225R Features

  • DPDT slide switch with On-On function.
  • Rated for 125V and 300mA.
  • Operating temperature from -10°C to 60°C.
  • Through hole, right angle mounting.
  • Epoxy sealed terminals for protection.

MSS225R Applications

  • Suitable for general purpose switching.
  • Used in control panel applications.
  • Ideal for low current circuits.
  • Compact design for PCB mounting.

MSS225R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the circuit type of the MSS225R switch?

The MSS225R switch has a DPDT circuit.

What is the voltage rating for the APEM Inc. MSS225R slide switch?

The voltage rating for the MSS225R is 125 V.

What is the current rating of the MSS225R?

The current rating is 300mA (AC/DC).

What is the operating temperature range for this slide switch?

The operating temperature range is -10°C to 60°C.

How is the MSS225R switch mounted?

The MSS225R switch is mounted through hole at a right angle.

What type of terminals does the MSS225R have?

The MSS225R has PC pin termination style.
