| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Height | |
| Holding Type | |
| Length | |
| Material | |
| Mounting Hole Diameter | |
| Mounting Panel Thickness | |
| Mounting Type | |
| Support Hole Diameter | |
| Support Panel Thickness |

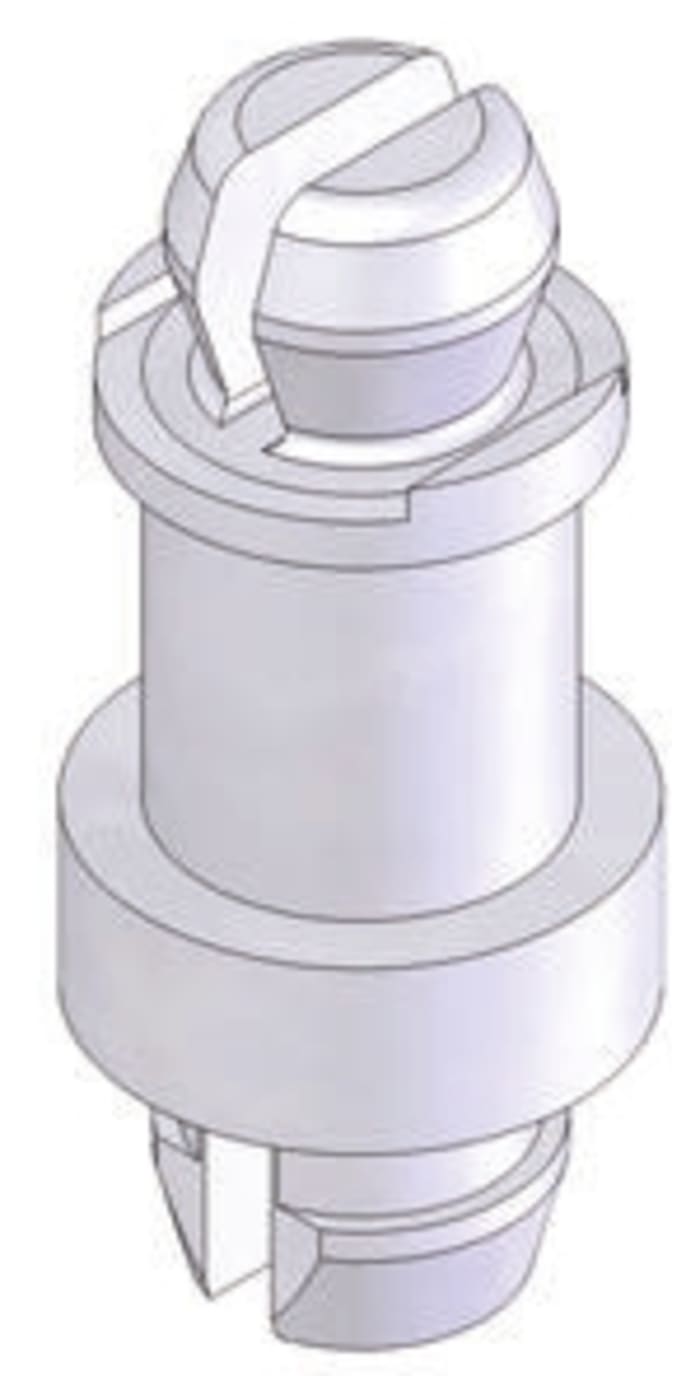

The Essentra Components MSPE-3-01 is a nylon PCB post, also known as a PCB support, designed for secure mounting of printed circuit boards. This component features a primary height of 4.8mm and an overall height of 12.2mm, providing adequate spacing for electronic components. It is designed to fit a 3.9mm PCB hole diameter and is suitable for PCB thicknesses of 1.57mm. The support base width is 4.6mm. Constructed from durable nylon material, this PCB post ensures reliable performance in various electronic applications. Its robust design makes it suitable for chassis mounting.
This PCB post is engineered for ease of use with a snap-lock mounting type and snap-fit holding type. The specified PCB hole diameter is 3.9mm, and it accommodates a PCB thickness of 1.57mm. The overall dimensions, including a height of 4.8mm and an overall height of 12.2mm, make it a versatile component for board-to-chassis or board-to-board applications. The material, Nylon, offers good electrical insulation properties and mechanical strength for typical PCB support requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The support post has a diameter of 0.25 inches (6.35 mm).
It is made from nylon.
It uses a snap lock mounting type.
The overall height is 12.2 mm.
The support base width is 4.6 mm.
The standard package contains 100 units.
Yes, it is RoHS3 compliant.
