MSP430FR2522IRHLT The MSP430FR2522IRHLT is a 16-bit microcontroller from Texas Instruments featuring 8KB of FRAM and 2KB of SRAM. It operates at up to 16MHz and includes a 10-bit ADC.
Mfr Part #:

MSP430FR2522IRHLT

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The MSP430FR2522IRHLT is a 16-bit microcontroller from Texas Instruments featuring 8KB of FRAM and 2KB of SRAM. It operates at up to 16MHz and includes a 10-bit ADC.
✓ Total Stock: 26,588 pcs
$ Price Range: $1.05

MSP430FR2522IRHLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
26,588 pcs
On Request
26588 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MSP430FR2522IRHLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Frequency
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

MSP430FR2522IRHLT Description

Short technical summary and product information.

The Texas Instruments MSP430FR2522IRHLT is a 16-bit microcontroller based on the MSP430 CPU16 core, operating at frequencies up to 16MHz. It offers 8KB of FRAM for program memory and 2KB of SRAM. This device includes a 10-bit Analog-to-Digital Converter (ADC) with 8 channels and supports various communication interfaces including I2C, SPI, and UART.



Designed for applications requiring advanced sensing capabilities, it features CapTIvate Touch I/O and a real-time clock. The microcontroller operates within a wide voltage range of 1.8V to 3.6V and has 15 general-purpose input/output (GPIO) pins. Its operating temperature range is -40°C to 85°C.

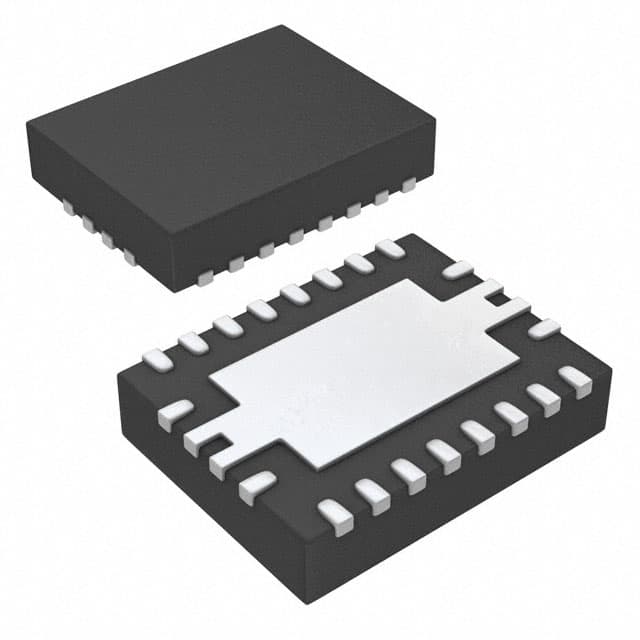

The MSP430FR2522IRHLT is available in a 20-VQFN package and supports surface mount installation. Peripherals include Brown-out Detect/Reset, Cap Sense, POR, PWM, and WDT, making it suitable for a range of embedded systems.

MSP430FR2522IRHLT Quick Information

Product Type: Microcontroller
Series: MSP430FR25x2
Canonical Name: MSP430FR2522IRHLT Capacitive Touch MCU
Subcategory: Sensing MCUs

MSP430FR2522IRHLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MSP430FR2522IRHLT Estimated Pricing

Qty Low High
1+ $1.05 $1.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

MSP430FR2522IRHLT Features

  • 16-bit MSP430 CPU operating at 16MHz.
  • 8KB FRAM and 2KB SRAM memory.
  • 8-channel 10-bit ADC for analog conversion.
  • Supports I2C, SPI, and UART communication.
  • Available in a 20-VQFN surface mount package.

MSP430FR2522IRHLT Applications

  • Ideal for capacitive touch sensing applications.
  • Suitable for low-power embedded systems.
  • Used in real-time clock applications.
  • General purpose microcontroller tasks.

MSP430FR2522IRHLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MSP430FR2522IRHLT?

The operating voltage range is 1.8V to 3.6V.

What package type is the MSP430FR2522IRHLT available in?

The MSP430FR2522IRHLT is available in a 20-VQFN package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 85°C.

What is the program memory type and size?

It features 8KB of FRAM program memory.

How many GPIO pins does the MSP430FR2522IRHLT have?

The device has 15 GPIO pins.
