| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59,279 pcs
|
59279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
365 pcs
|
365 pcs | On Request | 1 | On Request | On Request | 1731+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Frequency | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Texas Instruments MSP430FR2000IRLLR is a low-power 16-bit microcontroller based on a RISC architecture, capable of operating at speeds up to 16 MHz. It features 512 bytes of Ferroelectric RAM (FRAM) for nonvolatile storage and 512 bytes of SRAM. The device supports a wide supply voltage range from 1.8V to 3.6V.
Key peripherals include an 8-channel 10-bit Analog-to-Digital Converter (ADC), an integrated temperature sensor, an enhanced comparator with a 6-bit DAC, one 16-bit Timer_B3, and an RTC counter. It also includes enhanced serial communications interfaces such as UART/USART, SPI, and SCI.
This microcontroller is designed for low-power applications, offering optimized low-power modes with active mode current consumption of 120 µA/MHz and shutdown mode as low as 34 nA. The FRAM offers radiation resistance and nonmagnetic properties with a write cycle endurance of 10^15.

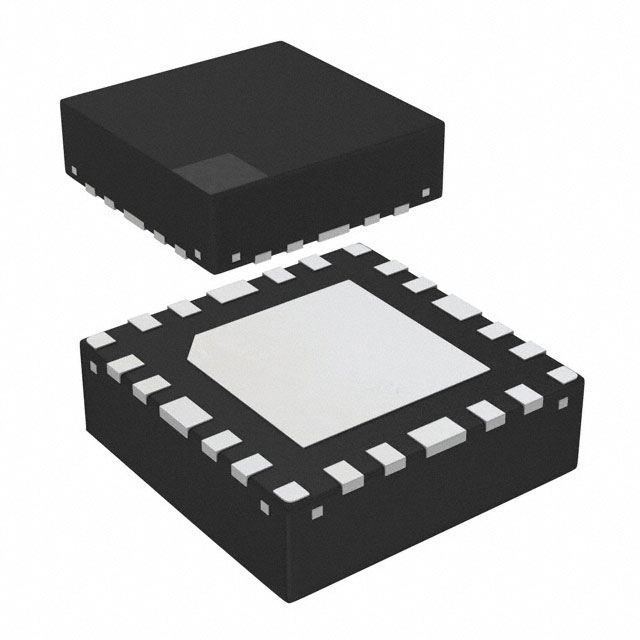

The MSP430FR2000IRLLR is supplied in a 24-VQFN (3x3) surface-mount package. It operates within an ambient temperature range of -40°C to 85°C. The standard package quantity is 250 units on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is from 1.8V to 3.6V.
It is available in a 24-VQFN (3x3) package.
The operating temperature range is -40°C to 85°C (TA).
It has 512B of FRAM program memory.
Peripherals include Brown-out Detect/Reset, POR, PWM, WDT, IrDA, SCI, SPI, and UART/USART.
Active mode is 120 µA/MHz, Standby LPM3.5 with VLO is 1 µA, RTC counter (LPM3.5 with 32768-Hz crystal) is 1 µA, and Shutdown (LPM4.5) is 34 nA without SVS.
