| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51,863 pcs
|
51863 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Texas Instruments MSP430F6735IPN is a mixed-signal microcontroller based on a 16-bit RISC architecture. It offers 128KB of FLASH program memory and 4KB of RAM, supporting operation up to 25MHz. The device operates within a low supply voltage range of 1.8V to 3.6V, making it suitable for power-sensitive applications.
Key electrical features include multiple data converters, including five 10-bit and three 24-bit ADCs, and a variety of peripherals such as Brown-out Detect/Reset, DMA, LCD controller, POR, PWM, and WDT. Connectivity options include I²C, IrDA, LINbus, SCI, SPI, and UART/USART.

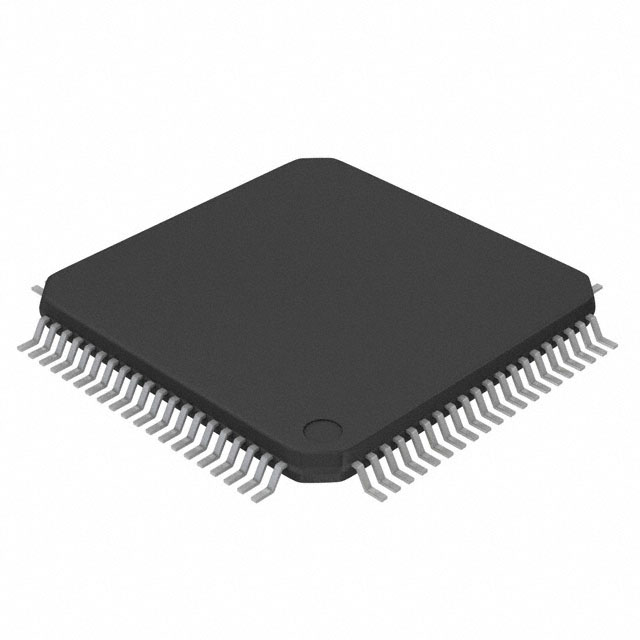

This microcontroller is housed in an 80-pin LQFP package with surface mount mounting type. It operates within a temperature range of -40°C to 85°C (TA). The internal oscillator type simplifies design by eliminating the need for external clock sources.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.6V.
The program memory size is 128KB.
The RAM size is 4KB.
The maximum operating speed is 25MHz.
It is supplied in an 80-LQFP package.
The operating temperature range is -40°C to 85°C (TA).
