| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,610 pcs
|
8610 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Frequency | |
| Operating Temperature Range | |
| SVHC Present | |
| Supply Voltage |
The Texas Instruments MSP430F5435 is a 16-bit RISC architecture microcontroller operating at up to 18 MHz. It offers 192KB of Flash memory and 16KB of SRAM, making it suitable for various embedded applications.
Key electrical features include a 12-bit SAR ADC with 14 channels, multiple communication interfaces such as 2 UART, 4 SPI, and 2 I2C ports, and 67 GPIO pins. The device supports a flexible power-management system with ultra-low power consumption in active, standby, and off modes, with wake-up times from standby as low as 5 µs.

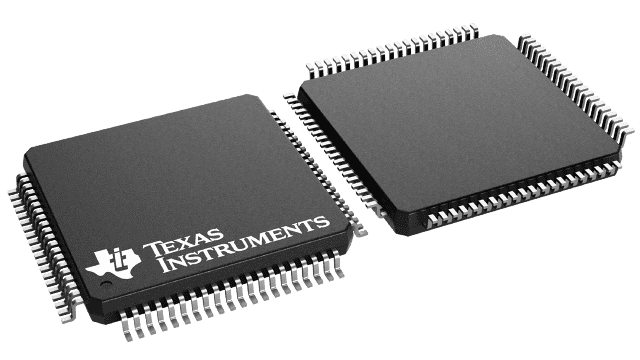

This microcontroller is housed in an 80-pin LQFP package with dimensions of 196 mm² (14 mm × 14 mm). It operates within a supply voltage range of 2.2V to 3.6V and has an operating temperature range of -40 to 85 °C.
Note: This part is not recommended for new designs. Consider the MSP430F5435A as an alternative.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MSP430F5435 operates at a nominal frequency of 18 MHz.
The MSP430F5435 has 192KB of Flash memory and 16KB of SRAM.
The microcontroller features a 12-bit SAR ADC with 14 channels.
It includes 2 UART, 4 SPI, and 2 I2C interfaces.
The operating temperature range is -40 to 85 °C.
The supply voltage range is 2.2V to 3.6V.
It is supplied in an 80-pin LQFP package measuring 196 mm² (14 mm × 14 mm).
