| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Rated Current | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

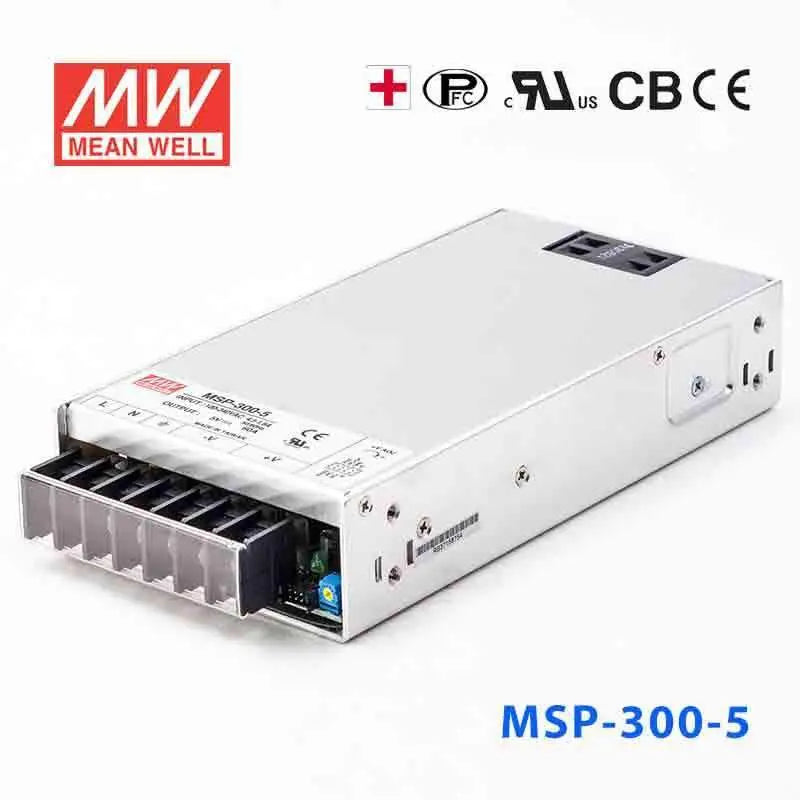

The Mean Well USA MSP-300-5 is an enclosed AC/DC power supply designed for versatile applications. It operates with a universal AC input range of 85-264VAC and provides a stable 5V DC output at a rated power of 300W.
Key electrical specifications include a rated current of 60A, a current range of 0-60A, and a typical efficiency of up to 89%. The unit incorporates built-in active PFC function with a power factor greater than 0.95. It also features adjustable output voltage within a range of 4.3-5.8V, with tight line and load regulation of ±0.5% and ±1.0% respectively.
Protection features are robust, including constant current limiting for overload conditions, over-voltage protection, over-temperature protection, and short circuit protection. The power supply is designed for chassis mounting and has a low profile of 41mm (1U).
Environmental considerations include an operating temperature range of -40°C to +70°C and a typical MTBF of 140,000 hours. The MSP-300-5 is suitable for medical applications, holding a medical safety approval (MOOP level). It also includes built-in remote ON/OFF control and remote sense functions.
The MSP-300-5 has a nominal output voltage of 5V.
The rated current for the MSP-300-5 is 60A.
The MSP-300-5 has a power rating of 300W.
The MSP-300-5 accepts an input voltage range of 85-264VAC or 120-370VDC.
The MSP-300-5 operates within a temperature range of -40°C to +70°C.
Yes, the MSP-300-5 features overload protection ranging from 105% to 135% of rated output power.
The MSP-300-5 complies with IEC 60601-1, ANSI/AAMI ES60601-1, and CAN/CSA C22.2 No. 60601-1 standards.
