| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

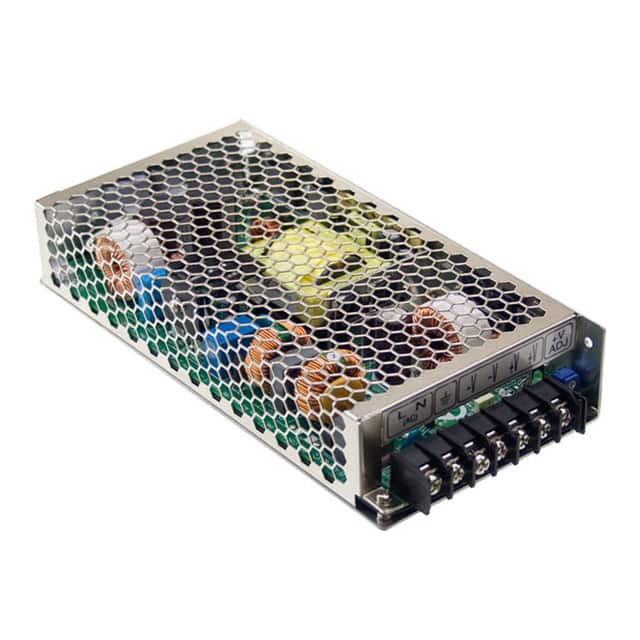

The Mean Well USA MSP-200-5 is an enclosed AC/DC converter designed for reliable power conversion. It provides a 5V output with a maximum power of 175W and a current rating of 35A.
This converter features a chassis mount type, making it suitable for integration into various systems. Key electrical specifications include adjustable output, power factor correction (PFC), remote on/off, remote sense, and universal input. It operates within a temperature range of -40°C to 70°C with derating.
The dimensions of the unit are 199.0mm in length, 98.0mm in width, and 38.0mm in height. It is approved by CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards. The MSP-200-5 is suitable for medical applications.
5V at 35A.
-40°C to 70°C with derating.
84%.
CB, CE, cURus, TUV.
4 kV.
199.0mm x 98.0mm x 38.0mm.
Chassis mount.
