| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

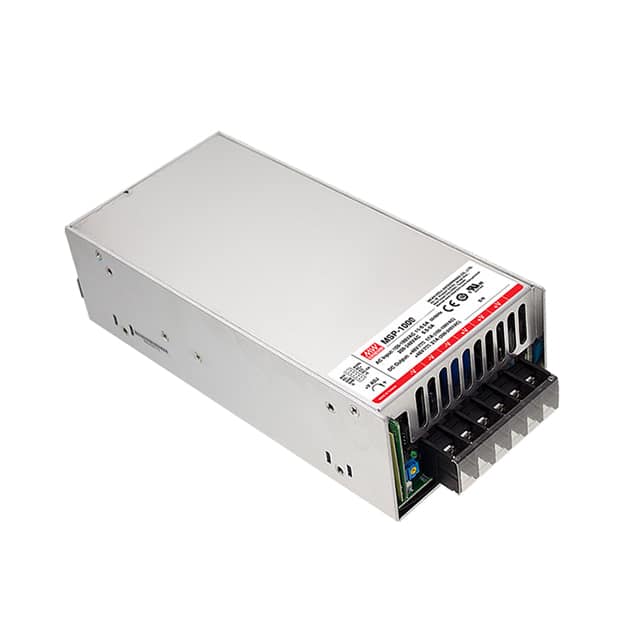

The Mean Well USA MSP-1000-12 is a robust enclosed AC/DC converter designed for medical applications. It provides a single 12V output rated at 80A with a total power capacity of 960W. The unit features a compact chassis mount design measuring 218.0mm x 105.0mm x 63.5mm.
This converter achieves 91.5% efficiency and incorporates Power Factor Correction (PFC), adjustable output, remote on/off, and remote sense functions for flexible system integration. It accepts a universal input and includes a 4 kV isolation voltage, making it suitable for demanding medical environments.
The MSP-1000-12 operates over a -40°C to 70°C temperature range with derating. It carries safety approvals from CB, CE, cURus, and EAC, and is claimed to be RoHS3 compliant.
The MSP-1000-12 provides a single output of 12V at 80A.
The maximum power rating is 960W.
The operating temperature range is -40°C to 70°C with derating.
The part is claimed to be RoHS3 compliant, but this information is unverified.
It is approved by CB, CE, cURus, and EAC.
The efficiency is 91.5%.
The dimensions are 218.0mm x 105.0mm x 63.5mm (L x W x H).
