| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight |

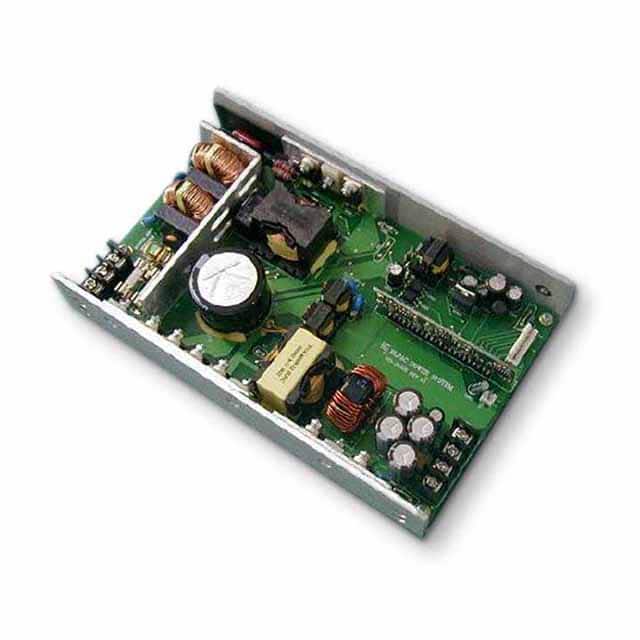

The Inventus Power MSMP25024F is a 250W open frame AC/DC power supply designed for medical applications. It delivers a regulated 24V DC output with a current rating of 10.5A.
This power supply operates with a wide input voltage range of 85-264 VAC and features Power Factor Correction (PFC) for improved efficiency. It boasts a typical efficiency of 88% and meets Level V standards. The unit is designed for chassis mounting and operates within a temperature range of 0°C to 70°C.
Key features include over-voltage, over-temperature, and over-current protection, along with short-circuit protection with auto-restart. The MSMP25024F is certified by TUV to UL 60601-1 and CAN/CSA-22.2 No.601.1-M90 standards, and is CE marked to LVD, making it suitable for ITE and medical grade applications.
The MSMP25024F provides a regulated 24V DC output.
The unit uses a chassis mount configuration with an open frame design.
The converter operates reliably between 0°C and 70°C, with linear derating above 50°C.
No minimum load is required for proper operation.
It accepts a universal input voltage range of 85 to 264VAC.
Yes, it is certified to UL 60601-1 and CAN/CSA-22.2 No.601.1-M90 standards.
