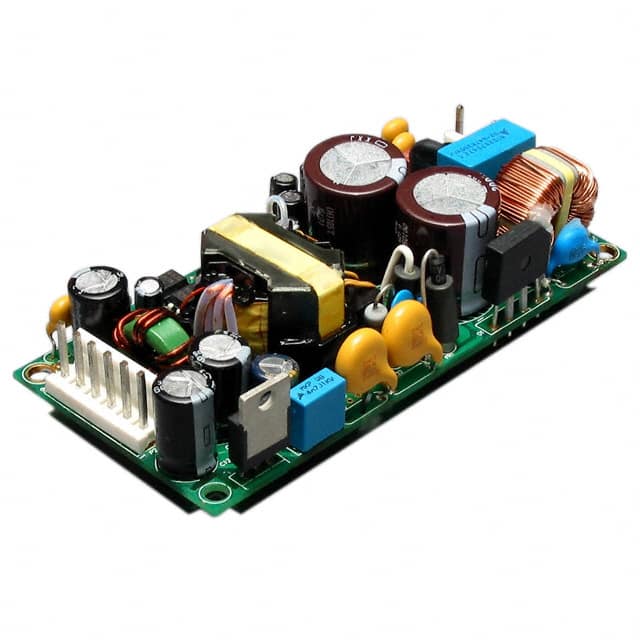

The Inventus Power MSM8012F is an open frame AC/DC converter with a power rating of 80W. It is designed for medical applications and offers a universal input voltage range of 85 to 264 VAC.
This converter features a chassis mount type and a single output. Its dimensions are 101.6mm x 50.8mm x 27.9mm. The operating temperature range is from 0°C to 50°C, with an efficiency of 89%.
Key specifications include a current rating of 6.6A and approval from agencies like CB and CE. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 50°C.
The efficiency is 89%.
Length 101.6mm, width 50.8mm, height 27.9mm.
Chassis mount.
CB and CE approvals.
