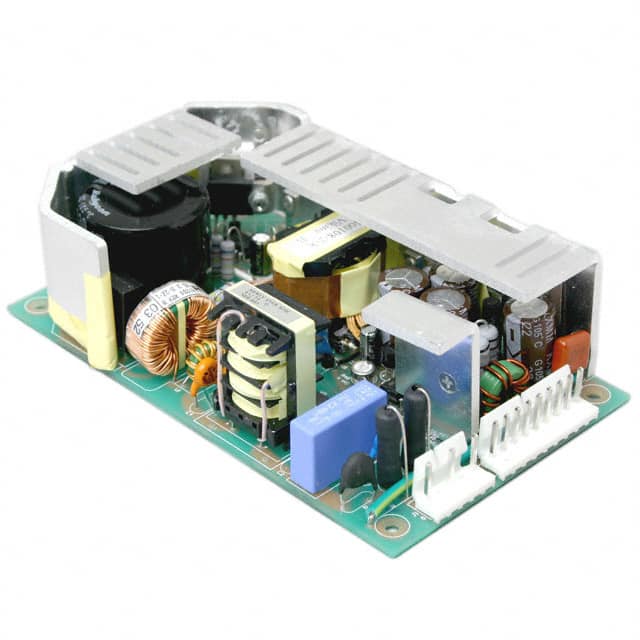

The Inventus Power MSM7512 is a 75 Watt AC/DC power supply designed for medical applications. It operates with a wide input voltage range of 90-264 VAC and provides a regulated 12V output at 6.3A.
This power supply boasts 80% minimum efficiency at full load and 115 VAC input. It includes built-in over-voltage, over-current, and short-circuit protection for reliable operation. The unit meets FCC Class B and CISPR 11 Class B standards for EMI/EMC, and complies with EN61000-3-2 Class A.
Designed for medical grade approval, the MSM7512 is suitable for various medical equipment. Its open frame, chassis mount design with dimensions of 5.75" L x 3.40" W x 1.66" H (146.1mm x 86.4mm x 42.2mm) allows for easy integration into systems requiring 1U applications. It operates within a temperature range of 0°C to 50°C.
The MSM7512 provides a 12V DC output voltage.
The MSM7512 has a power rating of 75 Watts.
The input voltage range for the MSM7512 is 90-264 VAC.
The operating temperature range for the MSM7512 is 0°C to 50°C.
The MSM7512 meets FCC Class B, CISPR 11 Class B, and complies with EN61000-3-2 Class A.
The MSM7512 is UR/cUR UL2601-1 certified and CE Marked EN60601-1-2:2001.
