| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Connector | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Connector | |
| Power | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

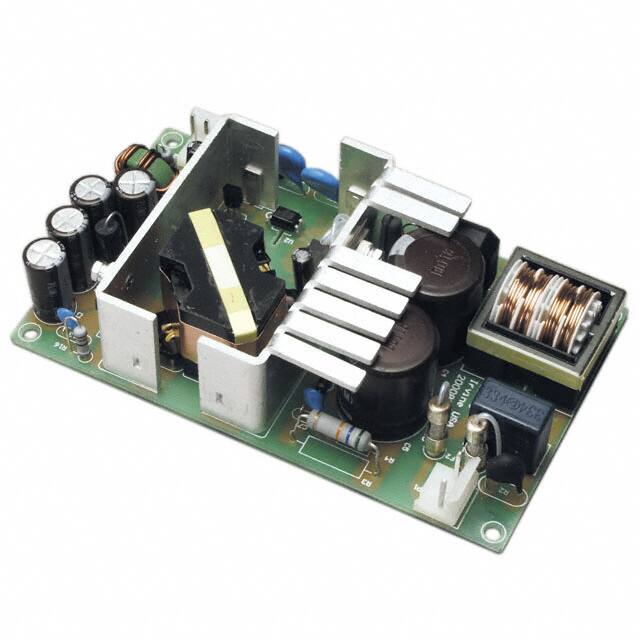

The Inventus Power MSM6012 is an open-frame AC/DC converter delivering 60 watts of power with a 12V output voltage and a 5A current rating. It accepts a wide input voltage range of 100 to 240 VAC, making it suitable for global applications. This power supply is specifically designed for medical grade approval, meeting stringent safety and EMC standards.
Key electrical specifications include a typical efficiency of 80% at full load and 115 VAC input, with built-in over-voltage, over-current, and short-circuit protections. The unit offers tight line and load regulation, typically +/- 0.5% and +/- 2% respectively, ensuring stable power delivery. It operates within a temperature range of 0°C to 50°C.
Mechanically, the MSM6012 features a chassis mount design with dimensions of 127.0mm x 76.2mm x 33.0mm. It utilizes Molex connectors for input and output. The power supply meets FCC Class B and CISPR 11 Class B standards for EMI/EMC and is CE marked per EN60601-1-2.
This converter is suitable for various medical equipment and other applications requiring reliable, regulated power. It comes with a 5-year warranty.
The output voltage is 12V.
The power rating is 60W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 50°C.
It uses a chassis mount.
It meets FCC class B, CISPR 11 class B, and EMC per EN60601-1-2.
It has UR/cUR UL2601-1 and is CE Marked EN60601-1-2:2001.
