| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight |

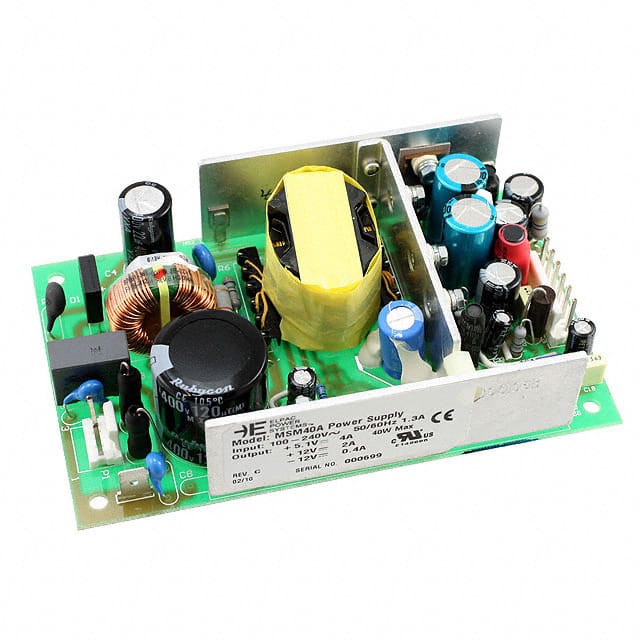

The Inventus Power MSM40A is a 40 Watt triple output AC DC power supply designed for medical applications. This open frame unit offers a wide range AC input from 85-264 VAC and provides fully regulated DC outputs.
Key electrical specifications include a primary output of 5.1V at 4.0A, a secondary output of 12V at 2.0A, and a tertiary output of -12V at 0.4A. The total regulation for each output is within ±5%. Efficiency is rated at 73% typical. The power supply features over-voltage, over-temperature, and over-current protection, along with short circuit protection.
With dimensions of 5.00" L x 3.00" W x 1.38" H, it is designed for chassis mounting. The operating temperature range is 0°C to 50°C. The unit meets various safety and EMC standards including UL 60601-1, EN61000-3-2, and FCC Class B emissions.
This power supply is suitable for applications requiring reliable and regulated power in a compact, open frame form factor, particularly within the medical device industry.
The MSM40A has three outputs: 5.1V at 4.0A, 12V at 2.0A, and -12V at 0.4A.
The input voltage range is 85-264 VAC.
The typical efficiency is 73.6% at 115VAC and 74% at 230VAC.
The operating temperature range is 0°C to 50°C.
It is certified to UL 60601-1, CAN/CSA-22.2 No.601.1-M90, CB per IEC60601-1, and is CE marked.
