| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

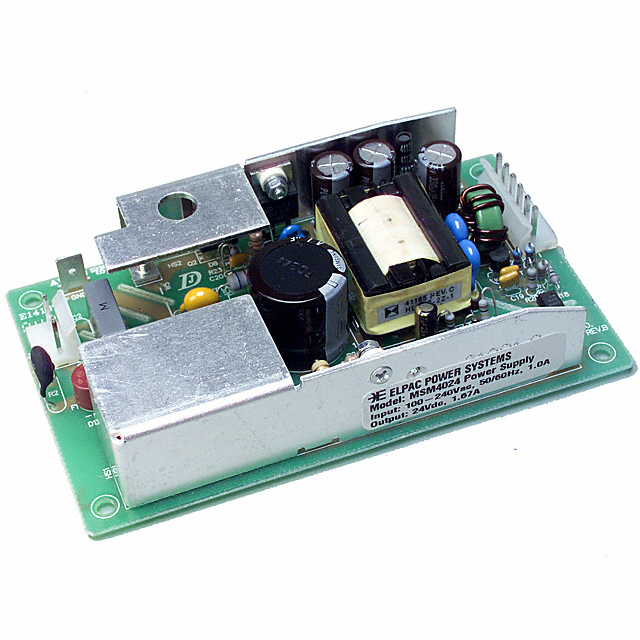

The Inventus Power MSM4024 is an open-frame AC/DC converter delivering 40W of power with a single 24V output. It operates with a universal input voltage range of 90 to 264 VAC, making it suitable for global applications. This converter is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 26.9mm.
With an efficiency of 80% and an operating temperature range of 0°C to 50°C, the MSM4024 is engineered for reliability. Its features include universal input capability and CE approval, indicating compliance with relevant safety standards. The primary application for this model is in the medical sector.
This converter provides a 1.67A output current and is classified as RoHS non-compliant. It has a Moisture Sensitivity Level (MSL) of 1 (Unlimited) and a REACH status of Unaffected.
The input voltage range is 90 to 264 VAC.
It provides a single 24V output at 1.67A.
The power rating is 40W.
The operating temperature range is 0°C to 50°C.
Efficiency is 80%.
It is an open frame package designed for chassis mount.
It is designed for medical applications.
