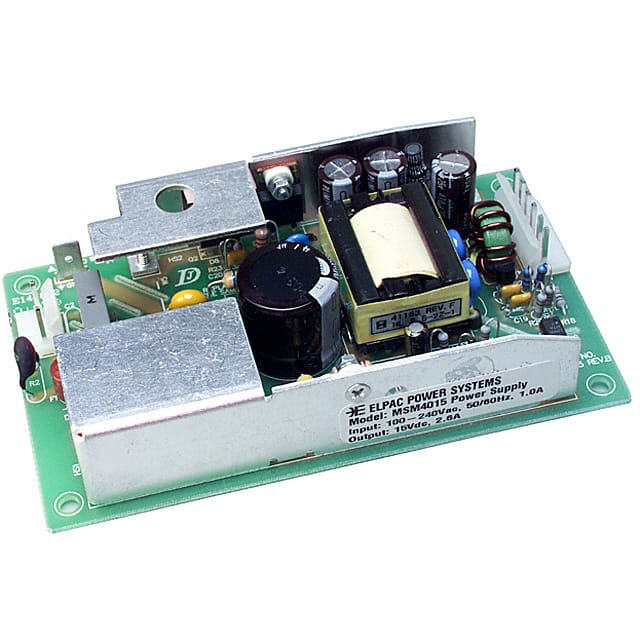

The Inventus Power MSM4015 is an open-frame AC/DC converter with a power rating of 40W and a single 15V output. It is designed for chassis mounting and accepts a universal input voltage range of 90 to 264 VAC.
This converter operates with 80% efficiency and features universal input, making it suitable for various applications. Its dimensions are 127.0mm in length, 76.2mm in width, and 26.9mm in height. The operating temperature range is from 0°C to 50°C.
Key specifications include an output current of 2.6A and compliance with CE standards. The MSM4015 is particularly suited for medical applications, offering reliable power conversion in a compact form factor.
The MSM4015 provides a single output of 15V at 2.6A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 50°C.
The efficiency is 80%.
The dimensions are 127.0mm (length) x 76.2mm (width) x 26.9mm (height).
It uses chassis mount.
It is CE approved.
