| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

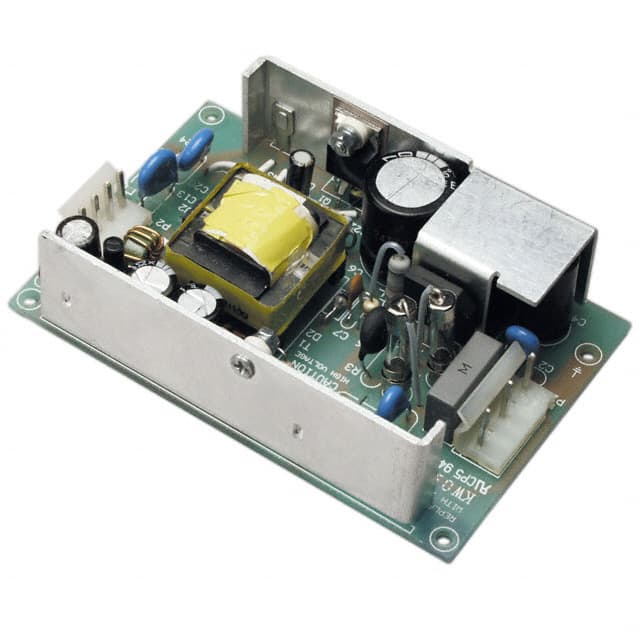

The MSM2815 from Inventus Power is a 28 Watt AC/DC power supply designed for medical applications. It provides a regulated 15V output with a current rating of 1.9A.
This power supply operates with a wide input voltage range of 100-240 VAC and a frequency of 50-60 Hz. Key electrical specifications include a typical line regulation of +/- 0.5% and load regulation of +/- 2%. It offers built-in over-voltage, over-current, and short-circuit protection. The efficiency is rated at a minimum of 80% at full load and 115 VAC.
Environmental specifications include an operating temperature range of 0°C to 50°C and a storage temperature range of -55°C to 85°C. The unit measures 101.6mm x 66.2mm x 33.0mm and weighs 0.30 lbs. It meets FCC Class B and CISPR 11 Class B EMI/EMC standards and is CE marked.
Safety approvals include UR/cUR and UL2601-1, indicating its suitability for medical equipment. The MSM2815 is suitable for chassis mounting.
100-240 VAC.
Chassis mount.
0°C to 50°C.
15V at 1.9A, 28W.
80% minimum at full load and 115VAC.
Over voltage, over current, and short circuit protection with auto recovery.
101.6mm x 66.2mm x 33.0mm.
