| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,682 pcs
|
5682 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Operating Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The NXP Semiconductors MSC8122TMP6400V is a high-performance Digital Signal Processor (DSP) based on the StarCore SC140 architecture. This device integrates four SC140 DSP cores, each with dedicated SRAM and cache, providing significant processing power for demanding applications.
Key electrical specifications include a clock rate of 400MHz, 1.436MB of on-chip RAM, and an operating voltage of 3.30V. The processor supports multiple interfaces such as DSI, Ethernet, and RS-232, facilitating integration into various system designs. It also features a 60x-compatible system bus with flexible data and address bus widths.

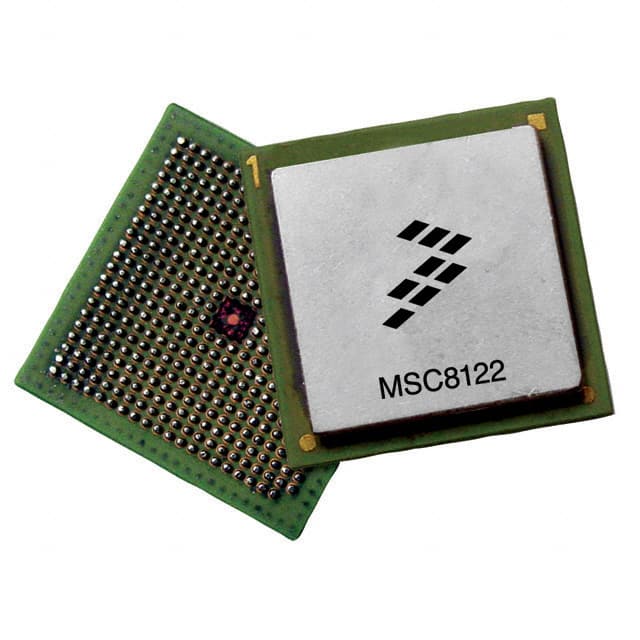

The MSC8122TMP6400V is supplied in a 431-FCPBGA (20x20 mm) package, designed for surface mounting. It operates within a temperature range of -40°C to 105°C (TJ). The internal memory architecture includes 1436 Kbyte of M1 SRAM, 475 Kbyte of M2 memory for critical data, and 4 Kbyte of boot ROM.
This DSP is suitable for applications requiring intensive signal processing capabilities, such as telecommunications, audio processing, and embedded control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.86 | $33.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clock rate of the MSC8122TMP6400V DSP is 400MHz.
The MSC8122TMP6400V has 1.436MB of on-chip RAM.
The operating voltage for the MSC8122TMP6400V is 3.30V.
The operating temperature range for the MSC8122TMP6400V is -40°C to 105°C (TJ).
The MSC8122TMP6400V is supplied in a 431-FCPBGA (20x20 mm) package.
The MSC8122TMP6400V supports DSI, Ethernet, and RS-232 interfaces.
