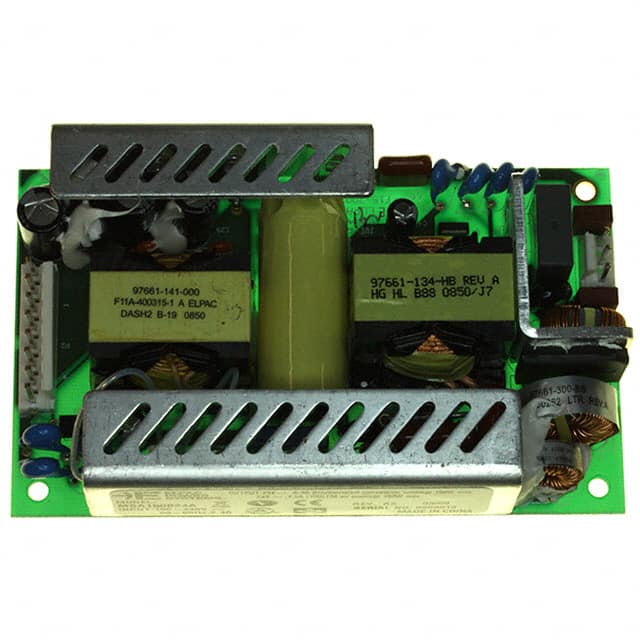

The Inventus Power MSA150024A is an 180 Watt medical open frame power supply from the MSA150 Series, Class I. It provides a 24V output and is designed for medical applications, meeting IEC/EN60601-1 Class I 3.1 Edition standards.
This power supply features a universal input voltage range of 85-264 VAC and operates at 47-63Hz. It boasts high efficiency, rated at Level V, with typical efficiency of 91.5% at 115VAC and 93.5% at 230VAC. The unit offers a power density of 9.83W/in³ and can deliver up to 200W with forced air cooling.
Key electrical specifications include ±5% total regulation, a maximum ripple and noise of <1% pk-pk, and comprehensive protection features such as over-voltage, over-temperature, and short-circuit protection. Leakage currents are kept low, with earth leakage typically <200μA @ 132VAC and touch leakage typically <50μA @ 132VAC.
The MSA150024A has a compact open frame form factor with dimensions of 127.0mm x 76.2mm x 30.9mm. It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C. The power supply comes with a 5-year limited warranty and an expected lifetime of over 5 years.
The input voltage range is 85-264 VAC at 47-63 Hz.
The operating temperature range is 0°C to 70°C, with full load up to 50°C and linear derating to 50% load at 70°C.
The MSA150024A is an open frame converter designed for chassis mounting.
It includes over voltage protection (110-135%), over current protection (120-180%), short circuit protection (hiccup mode auto-restart), and over temperature protection (active recoverable and passive non-recoverable).
Typical efficiency is 91.5% at 115VAC full load and 93.5% at 230VAC full load.
It is certified to IEC/EN60601-1 Class I 3.1 Edition for medical safety and IEC/EN 60601-1-2 4th edition for EMC.
Dimensions are 127.0mm x 76.2mm x 30.9mm (5.00" x 3.00" x 1.22") and weight is 0.34 kg (0.75 lbs).
