| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

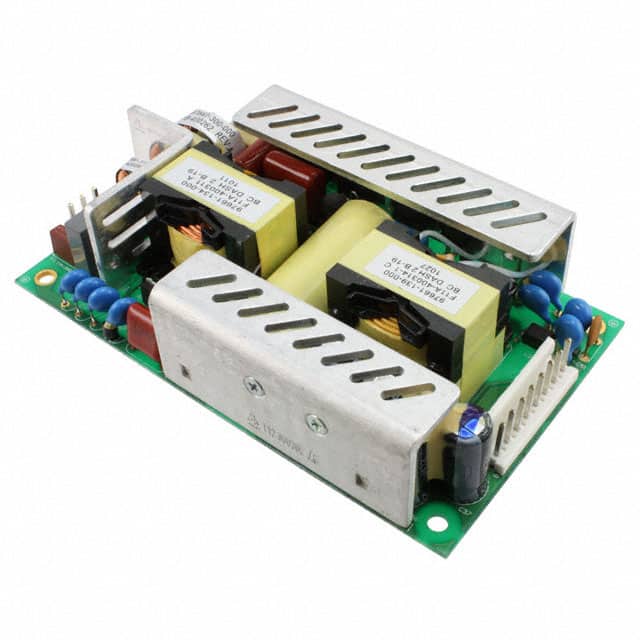

The Inventus Power MSA150018A is an open-frame AC DC converter designed for external or internal use. It features a universal input voltage range of 85 to 264 VAC, making it suitable for global applications. This converter delivers a power output of 150W, with an option for 180W under forced air conditions, and provides a stable output current of 8.3A.
With a high efficiency of 91%, the MSA150018A minimizes energy waste. It is designed with a chassis mount for easy integration into systems. The operating temperature range is from 0°C to 70°C, ensuring reliable performance in various environments. Key features include universal input and suitability for medical applications, indicated by its approval agencies including CB, CE, and cTUVus.
The dimensions of the unit are 127.0mm in length, 76.2mm in width, and 30.9mm in height. It has a single output and is RoHS3 compliant.
The MSA150018A is an External/Internal AC DC Converter from Inventus Power.
The input voltage range is 85 to 264 VAC.
The output current is 8.3 A.
The power rating is 150W, or 180W with forced air.
The operating temperature range is 0°C to 70°C.
It uses chassis mount.
