| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

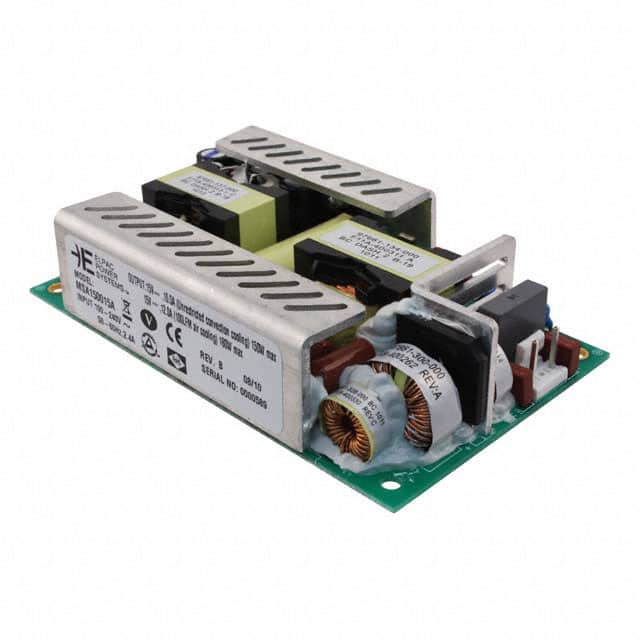

The Inventus Power MSA150015A is an open-frame AC/DC converter designed for medical applications. It provides a power output of 150W, with a maximum of 180W under forced air cooling, and delivers a 10A output current.
This converter operates with a wide input voltage range of 85 to 264 VAC, ensuring compatibility in various regions. It features universal input and an efficiency of 91%. The device is designed for chassis mounting and has a single output.
Key specifications include dimensions of 127.0mm x 76.2mm x 30.9mm and an operating temperature range of 0°C to 70°C. The MSA150015A is RoHS3 compliant and has an MSL 1 rating.
The MSA150015A provides a single output of 15V at 10A.
It is rated for 150W continuous power, or 180W with forced air cooling.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C.
It is approved to CB, CE, and cTUVus standards.
The efficiency is 91%.
It is designed for chassis mount installation.
