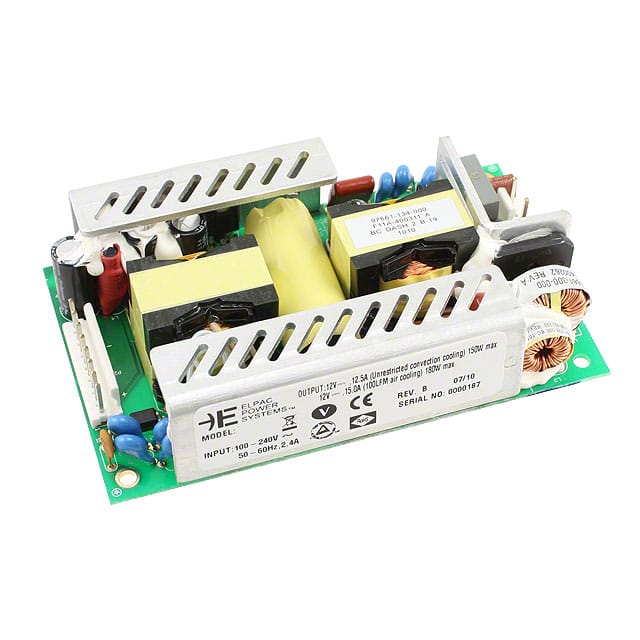

MSA150012A The Inventus Power MSA150012A is a 150W medical AC-DC converter with a 12V output and universal 85-264 VAC input. It features an open frame design for internal integration.
Mfr Part #:

MSA150012A

Mfr Name: Inventus Power
Inventus Power
The Inventus Power MSA150012A is a 150W medical AC-DC converter with a 12V output and universal 85-264 VAC input. It features an open frame design for internal integration.
Stock on Request

MSA150012A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Input Frequency
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Relative Humidity
Storage Temperature
Type
Voltage
Weight
View Similar Products (0)

MSA150012A Description

Short technical summary and product information.

The Inventus Power MSA150012A is an 180 Watt Class I medical open frame power supply designed for demanding applications. It operates with a universal input voltage range of 85 – 264 VAC and provides a stable 12V output current of 15.0A. This power supply boasts high efficiency, reaching up to 93.5% at 230VAC, and meets Level V efficiency standards.



Key features include low leakage current, over-voltage protection, over-current protection, and short circuit protection with auto-restart. The unit is designed for reliability with a lifetime expectation of over 5 years and a 5-year limited warranty. Its compact dimensions of 127mm x 76.2mm x 30.9mm make it suitable for integration into various medical devices.



Compliance includes IEC/EN60601-1 Class I 3.1 Edition for medical safety and IEC/EN 60601-1-2 4th edition for EMC safety. The MSA150012A is certified by TUV to relevant standards, ensuring its suitability for medical equipment. It operates within a temperature range of 0°C to 70°C and is cooled by natural convection or forced air.

MSA150012A Quick Information

Product Type: AC DC Converter
Series: MSA150 Series
Canonical Name: MSA150012A Medical Open Frame Power Supply
Subcategory: AC DC Converter

MSA150012A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MSA150012A Features

  • 180 Watt Class I medical open frame power supply.
  • Universal input voltage range of 85 – 264 VAC.
  • Provides a stable 12V output with 15.0A current.
  • High efficiency up to 93.5% meeting Level V standards.
  • Compliant with IEC/EN60601-1 and IEC/EN60601-1-2.

MSA150012A Applications

  • Designed for medical equipment applications.
  • Suitable for devices requiring stable 12V power.
  • Internal integration due to open frame design.
  • Meets stringent medical safety and EMC standards.

MSA150012A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the MSA150012A?

The output voltage is 12.0V and the output current is 15.0A.

What is the input voltage range?

The input voltage range is 85 to 264 VAC.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C, with full load to 50°C and linear derating to 50% load at 70°C.

What protections does this converter have?

It includes over voltage protection (110-135%), over current protection (120-180%), short circuit protection (shutdown with auto-restart hiccup mode), and over temperature protection (active recoverable and passive non-recoverable).

What is the efficiency of the MSA150012A?

Typical efficiency is 91.5% at 115 VAC and 93.5% at 230 VAC at full load.

What is the physical size and weight?

Dimensions are 127.0mm x 76.2mm x 30.9mm (5.00" x 3.00" x 1.22") and weight is 0.34 kg (0.75 lbs).

What is the warranty period?

The MSA150012A carries a 5-year limited warranty.
