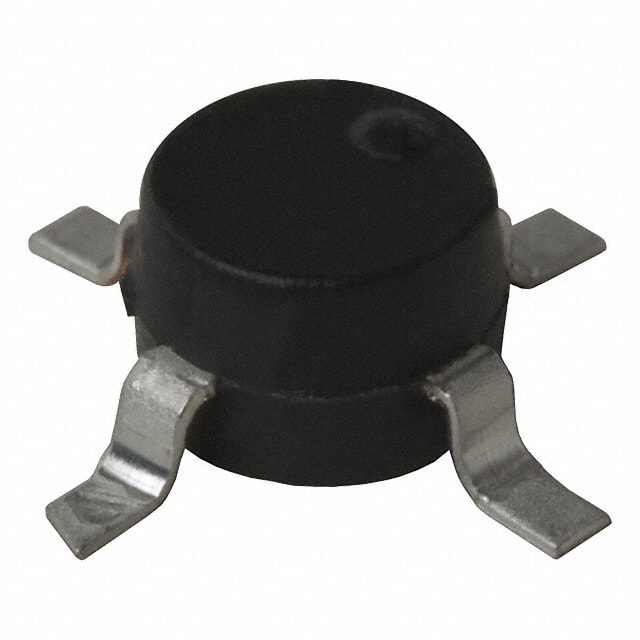

The Agilent MSA-1105 is a high-performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) amplifier housed in a low-cost, surface mount plastic package. This MMIC is designed for high dynamic range in either 50 or 75 Ohm systems, combining a low noise figure with high IP3.
Key electrical specifications include a typical power gain of 10.0 dB to 12.0 dB at 0.5 GHz, a 3 dB bandwidth of 1.3 GHz, and a typical noise figure of 3.6 dB at 0.5 GHz. The device offers a typical P1dB output power of 17.5 dBm at 0.5 GHz and a typical IP3 of 30.0 dBm.
Designed for commercial and industrial systems, typical applications include narrow and broadband linear amplifiers. The MSA-series is fabricated using Agilent’s silicon bipolar MMIC process. The device operates with a voltage range of 4.4V to 6.6V and a typical current draw of 80mA.
The MSA-1105 is available in a 4-SMD (05 Plastic) package and supports surface mounting. Tape-and-reel packaging options are available, along with a lead-free option.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.4V to 6.6V.
The typical noise figure is 3.6 dB at 0.5 GHz.
The 3 dB bandwidth is 1.3 GHz.
The typical P1dB is 17.5 dBm at 0.5 GHz.
It is in a 4-SMD (05 Plastic) surface mount package.
