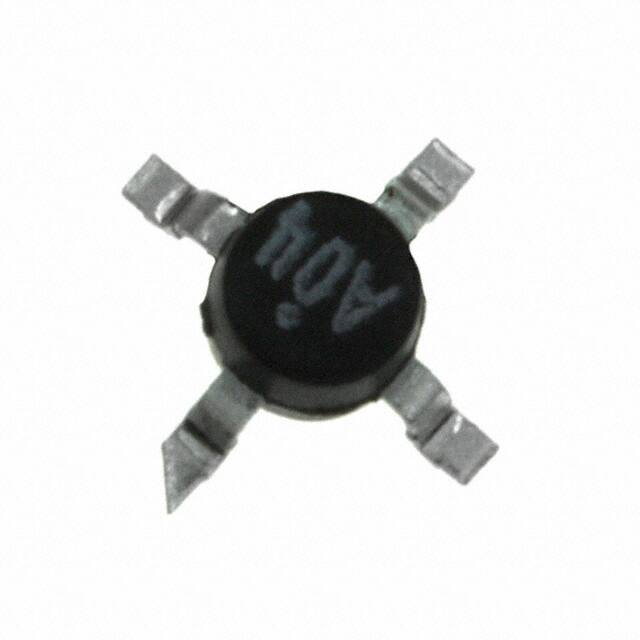

The MSA-0486-BLKG from Broadcom Limited is a high-performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) amplifier. Designed as a general-purpose 50 Ohm gain block, it is suitable for narrow and broad band IF and RF amplifier applications in commercial and industrial sectors.
This MMIC features a 3 dB bandwidth of DC to 3.2 GHz, with a typical power gain of 8.3 dB at 0.1 GHz and 8.0 dB at 1.0 GHz. It provides a typical P1dB of 12.5 dBm at 1.0 GHz and an unconditionally stable design (k>1). The device operates with a supply voltage range of 4.2V to 6.3V and draws a maximum current of 85 mA.
The MSA-0486-BLKG is housed in a low-cost, surface mount SOT-86 plastic package, making it suitable for automated assembly processes. It is available in bulk packaging. The MMIC process used ensures excellent performance, uniformity, and reliability, with an external bias resistor allowing for temperature and current stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical power gain of the MSA-0486-BLKG at 1 GHz is 8.0 dB.
The 3 dB bandwidth of the MSA-0486-BLKG is 3.2 GHz.
The typical P1dB for the MSA-0486-BLKG at 1.0 GHz is 12.5 dBm.
The device voltage range for the MSA-0486-BLKG is 4.2V to 6.3V.
The MSA-0486-BLKG is supplied in a SOT-86 plastic package.
The MSA-0486-BLKG is a surface mount component.
