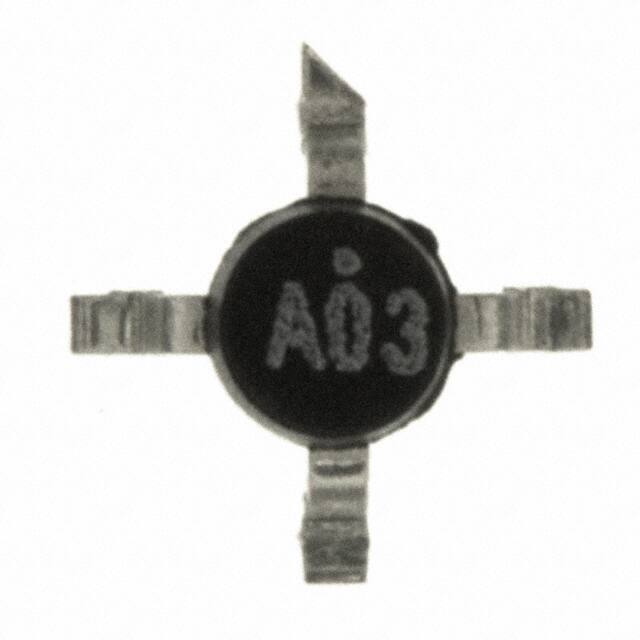

The MSA-0386-TR1G from Broadcom Limited is a high-performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) amplifier. It is designed for general-purpose 50 Ohm gain block applications, suitable for narrow and broadband IF and RF amplification needs.
This MMIC features a 3 dB bandwidth from DC to 2.4 GHz, with a typical gain of 12.0 dB at 1.0 GHz. It provides a typical output power at 1 dB gain compression (P1dB) of 10.0 dBm at 1.0 GHz and a typical noise figure of 6.0 dB at 1.0 GHz. The device operates with a supply voltage range of 4V to 6V and a typical current draw of 35 mA, with a maximum of 70 mA.
The MSA-0386-TR1G is housed in a low-cost, surface-mount SOT-86 plastic package, facilitating easy integration into PCB designs. It is unconditionally stable (k>1) and available in a lead-free option.
Typical applications include general-purpose IF and RF amplifiers in commercial and industrial systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical power gain of the MSA-0386-TR1G at 1.0 GHz is 12.0 dB.
The 3 dB bandwidth of the MSA-0386-TR1G is DC to 2.4 GHz.
The typical output power at 1 dB gain compression (P1dB) is 10.0 dBm at 1.0 GHz.
The typical noise figure at 1.0 GHz is 6.0 dB.
The device operates with a supply voltage between 4V and 6V.
The MSA-0386-TR1G is supplied in a surface-mount SOT-86 plastic package.
