| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,645 pcs
|
2645 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| Supply Current | |
| Supply Voltage |

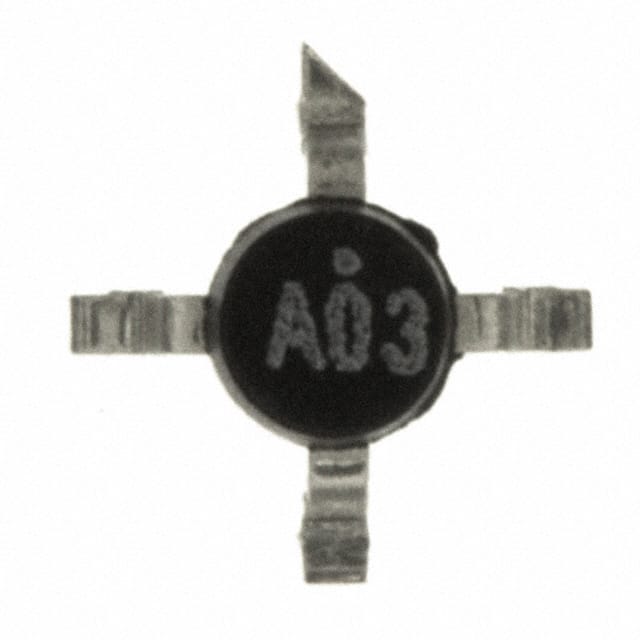

The MSA-0386 by Agilent Technologies is a cascadable silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) amplifier designed for general-purpose 50Ω gain block applications. It offers a wide frequency range from DC to 2.4 GHz, making it suitable for various narrow and broadband IF and RF amplification needs.
Key electrical specifications include a typical gain of 12 dB at 1.0 GHz and a typical output power (P1dB) of 10 dBm at 1.0 GHz. The amplifier has a noise figure of 6 dB and operates with a supply voltage between 4V and 6V, drawing a supply current of 70 mA.
Designed for unconditional stability (k > 1), the MSA-0386 is housed in a low-cost, surface-mount SOT-86 plastic package, facilitating easy integration into PCB designs. A lead-free option is available, complying with environmental and safety standards.
The MSA-0386 amplifier operates from DC to 2.4 GHz.
The typical gain of the MSA-0386 amplifier at 1.0 GHz is 12 dB.
The typical output power (P1dB) of the MSA-0386 amplifier at 1.0 GHz is 10 dBm.
The noise figure for the MSA-0386 amplifier is 6 dB.
The supply voltage range for the MSA-0386 amplifier is 4V to 6V.
The supply current for the MSA-0386 amplifier is 70 mA.
The MSA-0386 amplifier is supplied in a SOT-86 surface-mount package.
