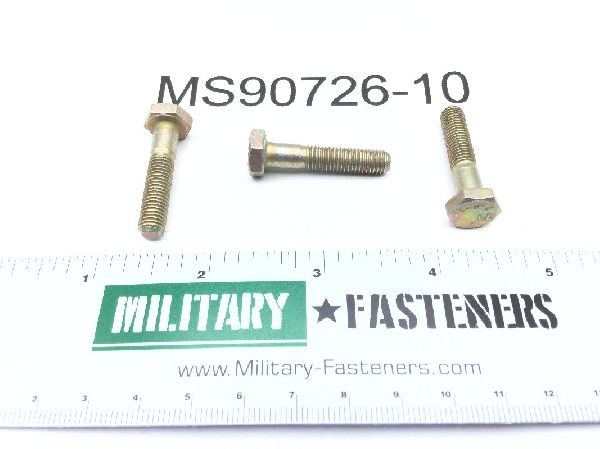

The MS90726-10 is a machine bolt from QPL, designed for various fastening applications. This bolt has a nominal length of 1.250 inches and features a 1/4-28 UNF thread with a thread class of 2a.
Constructed from steel, it meets SAE J429 Gr 8 standards. The bolt is treated with a zinc and chromate surface finish, compliant with ASTM B633 Ty 2 Sc 3. Key mechanical specifications include a minimum tensile strength of 150,000 psi and a hardness rating between 32.0 and 38.0 Rockwell C.
Additional features include a hexagon head style with a height between 0.150 and 0.163 inches, and a width between flats ranging from 0.428 to 0.438 inches. The thread length is specified between 0.750 and 0.938 inches. The MS90726-10 is designated as RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS90726-10 machine bolt has a nominal length of 1.250 inches.
The MS90726-10 bolt features a 1/4-28 UNF thread.
The MS90726-10 bolt is made of steel, conforming to SAE J429 Gr 8 standards.
The MS90726-10 bolt has a zinc and chromate surface treatment, compliant with ASTM B633 Ty 2 Sc 3.
The MS90726-10 bolt has a minimum tensile strength of 150,000 pounds per square inch.
The MS90726-10 is RoHS3 Compliant.
The MS90726-10 has a Moisture Sensitivity Level (MSL) of 1.
