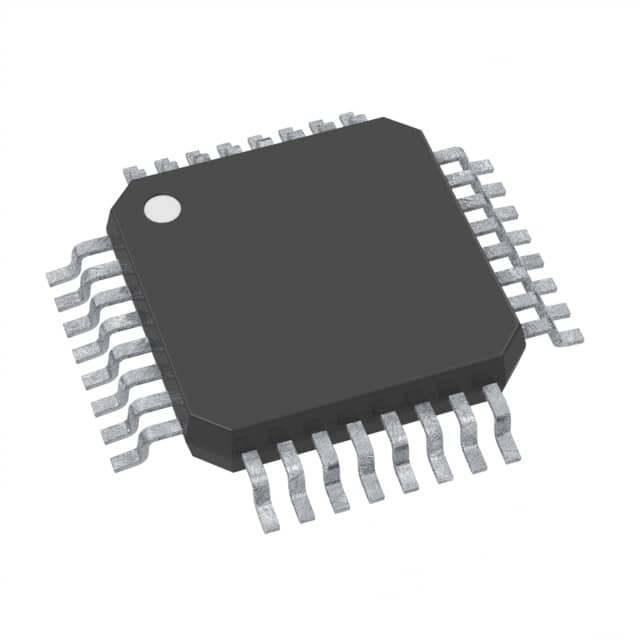

MS51PC0AE The Nuvoton MS51PC0AE is an 8-bit microcontroller based on the 8051 core, operating up to 24 MHz. It features 32KB of Flash memory and a 32-LQFP package.
Mfr Part #:

MS51PC0AE

Available from 1 distributors
Mfr Name: Nuvoton Technology
Nuvoton Technology
The Nuvoton MS51PC0AE is an 8-bit microcontroller based on the 8051 core, operating up to 24 MHz. It features 32KB of Flash memory and a 32-LQFP package.
✓ Total Stock: 6,216 pcs
$ Price Range: $6.40

MS51PC0AE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,216 pcs
On Request
6216 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS51PC0AE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

MS51PC0AE Description

Short technical summary and product information.

The Nuvoton MS51PC0AE is an 8-bit microcontroller built on a 1T 8051-based CMOS architecture, capable of running at speeds up to 24 MHz. This device is equipped with 32KB of Flash memory for program storage and 2KB of SRAM for data. It also includes a configurable 4KB loader ROM for In-System Programming (ISP).



Key peripherals include two UARTs, one I²C interface, and one SPI interface, supporting various communication protocols. The MS51PC0AE offers 30 general-purpose I/O pins and 15 channels of 12-bit Analog-to-Digital Converters (ADC) with a conversion rate of up to 500 ksps. It also features a Watchdog Timer (WDT), Window Watchdog Timer (WWDT), and 12 channels of 16-bit Pulse Width Modulation (PWM) outputs, making it suitable for motor control applications.



Designed for industrial applications, the MS51PC0AE operates within a voltage range of 2.4V to 5.5V and a temperature range of -40°C to +105°C. It is available in a 32-pin LQFP package, suitable for surface mounting. Target applications include LED lighting, home appliances, industrial control, motor control, battery management systems, and power supplies.

MS51PC0AE Quick Information

Product Type: Microcontroller
Series: MS51PC0AE
Canonical Name: Nuvoton MS51PC0AE 8-Bit 8051 Microcontroller
Subcategory: 8051 MCUs

MS51PC0AE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS51PC0AE Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS51PC0AE Features

  • 8-bit 8051-based CMOS microcontroller
  • Operates at up to 24 MHz clock speed
  • 32KB Flash memory and 2KB SRAM
  • Rich peripherals including UART, I2C, SPI, and ADC
  • Wide operating voltage and temperature range

MS51PC0AE Applications

  • Suitable for LED lighting applications
  • Used in home appliance designs
  • Ideal for industrial control systems
  • Applicable for motor control circuits
  • Designed for battery management systems

MS51PC0AE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MS51PC0AE?

The operating voltage range is 2.4V to 5.5V.

What is the operating temperature range for the MS51PC0AE?

The operating temperature range is -40°C to +105°C.

What package type is the MS51PC0AE available in?

The MS51PC0AE is available in a 32-LQFP package.

What is the RoHS status of the MS51PC0AE?

The RoHS status is RoHS3 Compliant.

What is the program memory size of the MS51PC0AE?

The program memory size is 32KB.

What is the core processor of the MS51PC0AE?

The core processor is 8051.

What is the speed of the MS51PC0AE microcontroller?

The microcontroller operates at a speed of up to 24MHz.
