MS24693-C2
NEF
The MS24693-C2 is a machine screw manufactured by NEF. It features a flat countersunk head, steel construction, and a right-hand thread.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Style |

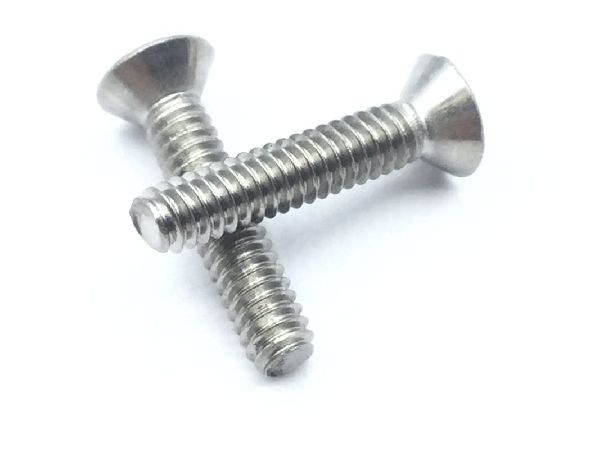

The MS51959-6 is a machine screw from QPL, adhering to the MS51959 series standards. This screw has a nominal fastener length of 0.438 inches and a thread length ranging from 0.402 to 0.438 inches. It features a flat countersunk head with a diameter between 0.147 and 0.172 inches, and an internal cross recess type 1 drive.
The screw has a thread diameter of 0.086 inches with 56 threads per inch (TPI) and a thread class of 2a. The minimum tensile strength is rated at 80 pounds per square inch. The countersink angle is between 80.0 and 82.0 degrees. The material is specified as steel, available in compositions 302, 303, 304, 305, or 316, with a passivate surface treatment conforming to Qq-p-35 fed spec.
This component is classified under the UNC thread series designator. It is packaged in increments of 100 units, with a standard package quantity of 100 and a pack weight of approximately 0.063 lb. The product is identified by SKU MS519596 and NSN 5305-00-763-3357.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal fastener length is 0.438 inches.
The head style is flat countersunk.
The screw material is steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316.
The thread diameter is 0.086 inches with 56 threads per inch.
The minimum tensile strength is 80 pounds per square inch.
