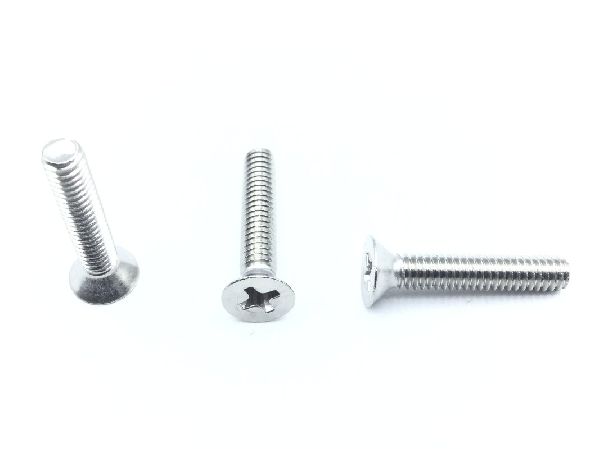

This MS51959-48 machine screw from QPL is designed for various mechanical applications. It has a fastener length of 0.875 inches and a thread length also between 0.813 and 0.875 inches, with a thread size of 8-32 UNC and a thread class of 2A.
The screw features a flat countersunk head style with an internal drive of cross recess type 1. The head diameter ranges from 0.292 to 0.332 inches, and the countersink angle is between 80.0 and 82.0 degrees. The minimum tensile strength is rated at 80,000 psi.
Constructed from steel compliant with Federal Standard 66, this screw is passivated for surface treatment according to QQ-P-35 federal specification. The material options include steel comp 302, 303, 304, 305, or 316. The minimum order quantity is 100 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fastener length is 0.875 inches.
The thread size is 8, with 32 threads per inch (TPI), and it is a UNC (coarse thread) series with a thread class of 2A.
The head style is flat countersunk.
The screw material is steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316, compliant with Federal Standard 66.
The screw surface treatment is passivate, with a specification of Qq-p-35 federal specification single treatment response.
The minimum tensile strength is 80,000 psi.
The minimum order quantity is 100 pieces.
