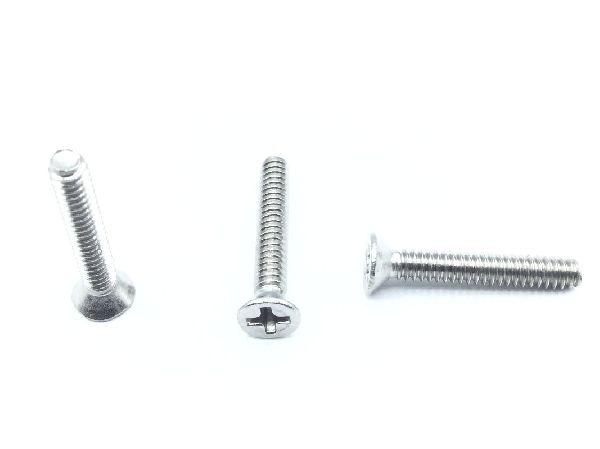

The MS51959-33 is a machine screw from QPL, part of the MS51959 series. This screw has a fastener length of 0.875 inches and a thread size of 6-32 with 32 threads per inch (UNC coarse thread).
Constructed from steel (options include 302, 303, 304, 305, or 316), it meets specification 66 federal standard. The screw is passivated with a Qq-p-35 federal specification surface treatment. It features a flat countersunk head style with a head diameter between 0.244 and 0.279 inches and a countersink angle between 80.0 and 82.0 degrees.
With a minimum tensile strength of 80,000 psi, a thread diameter of 0.138 inches, and a thread length between 0.813 and 0.875 inches, this screw is designed for robust applications. The internal drive style is a cross recess type 1, and the thread direction is right-hand with a class 2A thread.
Packaged in quantities of 50, the MS51959-33 has a pack weight of approximately 0.151 lb. It is listed with a RoHS3 Compliant status, MSL 1 Unlimited, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS51959-33 screw has a nominal fastener length of 0.875 inches.
The MS51959-33 screw features a flat countersunk head style.
The internal drive style for the MS51959-33 is cross recess type 1.
The thread size of the MS51959-33 is 6-32.
The MS51959-33 screw is made from steel, specifically compositions 302, 303, 304, 305, or 316.
The MS51959-33 has a minimum tensile strength of 80000 psi.
The standard package quantity for the MS51959-33 is 50 pieces.
