| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
291 pcs
|
291 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Style | |
| Thread Length |

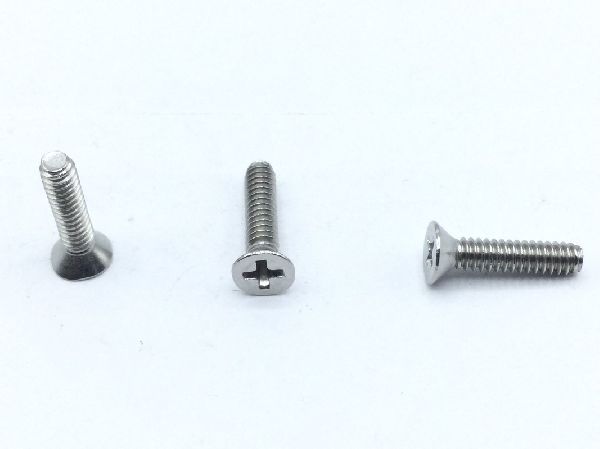

This MS51959-17 machine screw from NEF is manufactured to military standards. It has a nominal fastener length of 0.500 inches and a thread diameter of 0.112 inches with 40 threads per inch (TPI). The screw features a flat countersunk head style with a diameter between 0.195 and 0.225 inches, and an internal cross recess type 1 drive.
The material is specified as steel comp 302, 303, 304, 305, or 316, with a passivate surface treatment conforming to Qq-p-35 fed spec. The countersink angle is between 80.0 and 82.0 degrees. The minimum tensile strength is rated at 80 psi.
This component is part of the MS51959 series and is sold in pre-packaged bags of 100 units, with a minimum order quantity of 100.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS51959-17 machine screw has a thread diameter of 0.112 inches and 40 threads per inch (TPI).
The MS51959-17 screw has a nominal fastener length of 0.500 inches.
The MS51959-17 machine screw is made from steel comp 302, 303, 304, 305, or 316.
The MS51959-17 screw has a passivate surface treatment.
The minimum tensile strength for the MS51959-17 is 80 pounds per square inch.
