| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
314 pcs
|
314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Height | |
| Head Style | |
| Product Series | |
| SVHC Present | |
| Thread Length |

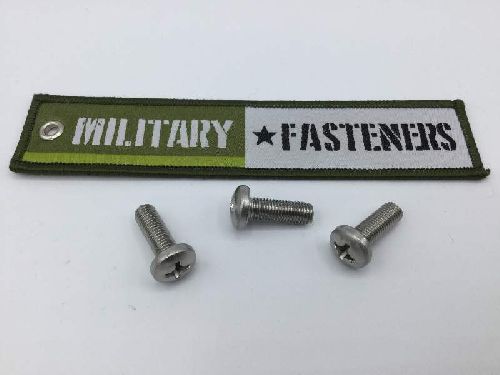

The MS51958-81 is a military standard machine screw manufactured by QPL. This screw features a 1/4" diameter with a 28 TPI fine thread (UNF) and a length of 3/4". The head style is a pan head with a cross recess type 1 internal drive. Constructed from stainless steel (options include Steel comp 302, 303, 304, or 305) and passivated for surface treatment, it offers a minimum tensile strength of 80,000 psi.
This component adheres to a thread class of 2A and has a right-hand thread direction. The head diameter ranges between 0.473 and 0.492 inches, with a head height between 0.162 and 0.175 inches. It is classified under the MS51958 series and has an NSN of 5305-00-059-3677. The standard package quantity is 25 pieces, with a minimum order quantity of 25.
The MS51958-81 is RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH unaffected. This screw is suitable for various mechanical fastening applications where military-standard components are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MS51958-81 machine screw has a 1/4" thread diameter with 28 threads per inch, designated as UNF (fine thread).
The MS51958-81 machine screw has a fastener length of 0.750 inches.
The MS51958-81 machine screw is made from stainless steel, with options including Steel comp 302, 303, 304, or 305.
The MS51958-81 machine screw features a pan head style.
The minimum tensile strength for the MS51958-81 machine screw is 80,000 psi.
The standard package quantity for the MS51958-81 machine screw is 25 pieces.
