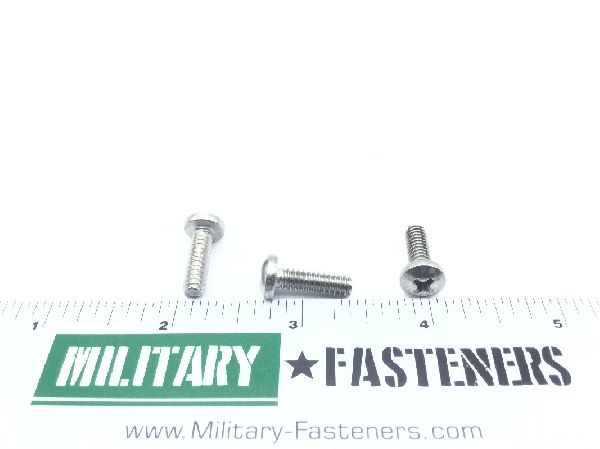

MS51957-64 This MS51957-64 is a machine screw from Q.P.L. It features a 10-24 UNC thread, a 5/8" length, and a pan head style.
Mfr Part #:

MS51957-64

Available from 1 distributors
Mfr Name: QPL
QPL
This MS51957-64 is a machine screw from Q.P.L. It features a 10-24 UNC thread, a 5/8" length, and a pan head style.
✓ Total Stock: 2,526 pcs
$ Price Range: $0.99

MS51957-64 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
2,526 pcs
On Request
2526 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS51957-64 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Head Diameter
Head Height
Head Style
Length
Material
Tape & Reel
Thread Length
Thread Size
View Similar Products (0)

MS51957-64 Description

Short technical summary and product information.

The MS51957-64 is a machine screw manufactured by Q.P.L. This component is designed with a 10-24 UNC coarse thread and a length of 5/8 inches. It features a pan head style and a cross recess type 1 internal drive.



Constructed from corrosion-resistant steel, this screw meets military specification Mil-c-13924 cl 4 for its oxide surface treatment. The minimum tensile strength is rated at 80,000 psi. The thread diameter is 0.190 inches, with a thread length between 0.511 and 0.625 inches. The head dimensions include a height between 0.122 and 0.133 inches and a diameter between 0.357 and 0.373 inches. The overall fastener length is between 0.594 and 0.625 inches.



This MS51957-64 screw is part of the MS51957 series and is suitable for various mechanical applications requiring a durable and corrosion-resistant fastening solution.

MS51957-64 Quick Information

Product Type: Machine Screw
Series: MS51957
Canonical Name: MS51957-64 Pan Head Machine Screw
Subcategory: Machine Screw

MS51957-64 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS51957-64 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS51957-64 Features

  • 10-24 UNC coarse thread specification.
  • 5/8 inch fastener length.
  • Pan head style with cross recess drive.
  • Corrosion resistant steel construction.
  • Meets Mil-c-13924 cl 4 surface treatment.

MS51957-64 Applications

  • Used in mechanical assemblies.
  • Suitable for industrial applications.
  • Ideal for corrosion-prone environments.
  • General purpose fastening needs.

MS51957-64 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the thread size and type for the MS51957-64 screw?

The MS51957-64 screw has a 10-24 UNC thread, meaning 10 threads per inch with a coarse thread series.

What is the length of the MS51957-64 screw?

The fastener length for the MS51957-64 screw is between 0.594 and 0.625 inches, with a nominal thread length of 5/8 inches.

What material is the MS51957-64 screw made of?

The MS51957-64 screw is made of steel.

What is the head style of the MS51957-64 screw?

The MS51957-64 screw features a pan head style.

What is the minimum tensile strength of the MS51957-64 screw?

The minimum tensile strength for the MS51957-64 screw is 80,000 psi.
