The MS35489-4 is a nonmetallic grommet manufactured by ACCURATE, adhering to the MS35489 series standard. Constructed from synthetic rubber, this grommet is designed for durability and resistance to hot oil and coolants.

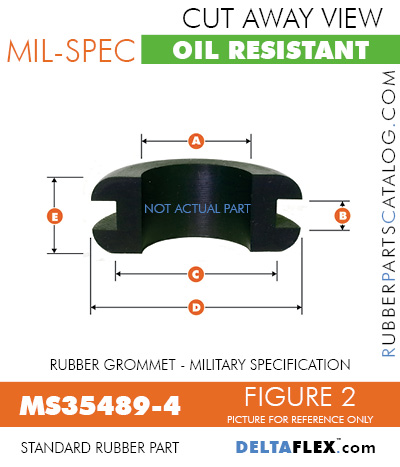

Key specifications include an inner diameter of 3/16 inches, a groove diameter of 5/16 inches, and a groove width of 1/16 inches. The large flange outside diameter ranges from 0.407 to 0.469 inches, with a hole diameter between 0.172 and 0.204 inches. The overall height is between 0.157 and 0.219 inches, and the flange thickness is between 0.046 and 0.078 inches. The material hardness is rated between 50.0 and 55.0 Shore Durometer A.
This grommet is black in color and features a solid flange construction. It is suitable for applications requiring protection against abrasion and insulation for wires or cables passing through panels. The material specification conforms to ASTM D2000 BG515A14B24C32E036F19Z.
Packaged in increments of 50, the MS35489-4 is a reliable component for various industrial and automotive applications where fluid resistance and robust sealing are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inner diameter is 3/16 inches.
The groove diameter is 5/16 inches.
The groove width is 1/16 inches.
The MS35489-4 grommet is made of synthetic rubber.
Yes, the MS35489-4 grommet is resistant to hot oil and coolant.
The hardness rating is between 50.0 and 55.0 Shore Durometer A.
The standard package quantity is 50 pieces.
