Mfr Part #:

MS35489-35

Available from 1 distributors

Mfr Name: QPL

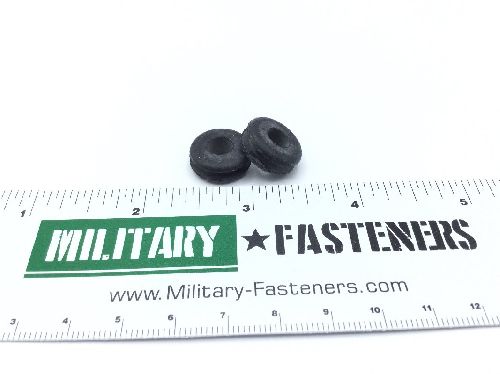

This MS35489-35 is a nonmetallic grommet made of synthetic rubber. It offers resistance to hot oil and coolant.

✓ Total Stock: 272 pcs

$ Price Range: $0.99

MS35489-35 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	272 pcs On Request	272 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MS35489-35 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	QPL
Color	Black
Features	Coolant resistant and oil resistant
Hole Diameter	0.234 - 0.266 in
Inner Diameter	0.25 in
Material	Synthetic Rubber
SVHC Present	Not Present

View Similar Products (0)

MS35489-35 Description

Short technical summary and product information.

The MS35489-35 is a nonmetallic grommet manufactured by QPL, designed for various industrial applications. Constructed from synthetic rubber, this grommet exhibits resistance to hot oil and coolant, making it suitable for demanding environments.

Key mechanical specifications include an inner diameter of 0.25 inches, a groove diameter of 0.4375 inches, and a groove width of 0.125 inches. The large flange outside diameter ranges from 0.594 to 0.656 inches, with a hole diameter between 0.234 and 0.266 inches. The flange thickness is between 0.046 and 0.078 inches, and the overall height is between 0.094 and 0.156 inches. The material specification adheres to Astm d2000 bg515a14b24c32e036f19z.

This grommet is solid in construction and comes in a black color. It is part of the MS35489 series. The standard package quantity is 25 pieces.

MS35489-35 Quick Information

Product Type: Grommet

Series: MS35489

Canonical Name: MS35489-35 Nonmetallic Grommet

Subcategory: Nonmetallic Grommet

MS35489-35 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MS35489-35 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS35489-35 Features

Synthetic rubber construction for durability.
Resistant to hot oil and coolant.
Inner diameter measures 0.25 inches.
Groove diameter is 0.4375 inches.
Solid construction type grommet.

MS35489-35 Applications

Ideal for protecting wires in chassis.
Used in automotive and industrial settings.
Suitable for fluid handling systems.
Provides insulation and vibration damping.

MS35489-35 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the inner diameter of the MS35489-35 grommet?

The inner diameter is 0.25 inches.

What material is the MS35489-35 grommet made of?

It is made of synthetic rubber.

Is the MS35489-35 grommet resistant to oil and coolant?

Yes, it is resistant to hot oil and coolant.

What is the groove width of the MS35489-35 grommet?

The groove width is 0.125 inches.

What is the RoHS status of the MS35489-35 grommet?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MS35489-35 grommet?

The MSL is 1 Unlimited.
