Mfr Part #:

MS35338-41

Available from 1 distributors

Mfr Name: QPL

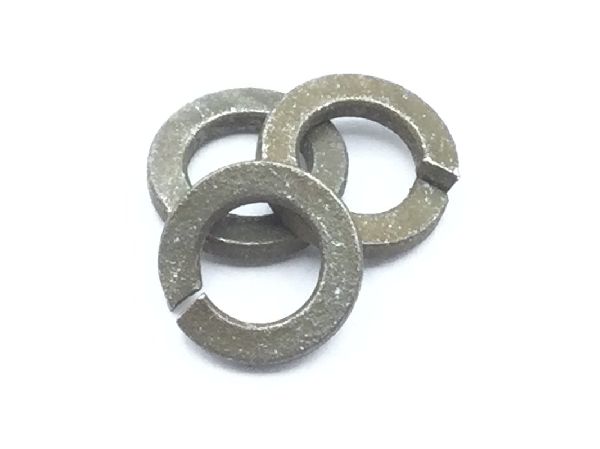

The MS35338-41 is a lock washer made of steel with cadmium plating. It features a split helical-right hand style.

✓ Total Stock: 489 pcs

$ Price Range: $0.99

MS35338-41 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	489 pcs On Request	489 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MS35338-41 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	QPL
Hole Diameter	0.141 to 0.148 inches
Material	Steel
Material Thickness	0.031 to 0.037 inches

View Similar Products (0)

MS35338-41 Description

Short technical summary and product information.

This MS35338-41 lock washer is manufactured from steel, meeting specifications AISI C1060 through C1080 or SAE 1060 through 1080. It is treated with cadmium plating according to Class 3 federal specification QQ-P-416.

The washer has an outside diameter of 0.25 inches and a material thickness ranging from 0.031 to 0.037 inches. The hole diameter is between 0.141 and 0.148 inches. Its hardness is rated between 45.0 and 53.0 Rockwell C.

The style designator for this washer is split helical-right hand, indicating its function as a lock washer. It is supplied in a standard package quantity of 100 pieces.

MS35338-41 Quick Information

Product Type: Lock Washer

Series: MS35338

Canonical Name: MS35338-41 Military Standard Lock Washer

Subcategory: Lock Washer

MS35338-41 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MS35338-41 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS35338-41 Features

Steel material with cadmium plating.
Split helical-right hand style.
0.25 inch outside diameter.
0.031 to 0.037 inch thickness.
45.0 to 53.0 Rockwell C hardness.

MS35338-41 Applications

Used for locking threaded fasteners.
Ideal for high-vibration environments.
Cadmium coating provides corrosion resistance.
Fits hole diameter 0.141-0.148 inches.

MS35338-41 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the outside diameter of the MS35338-41 lock washer?

The outside diameter is 0.25 inches.

What material is the MS35338-41 lock washer made from?

The lock washer is made of steel, conforming to AISI C1060 thru C1080 or SAE 1060 thru 1080 specifications.

What is the surface treatment applied to the MS35338-41 lock washer?

The surface treatment is Cadmium, specified as Class 3 federal specification single treatment response type 2 QQ-P-416.

What is the hardness rating of the MS35338-41 lock washer?

The hardness rating is between 45.0 and 53.0 Rockwell C.

What is the standard package quantity for the MS35338-41 lock washer?

The standard package quantity is 100 pieces.
