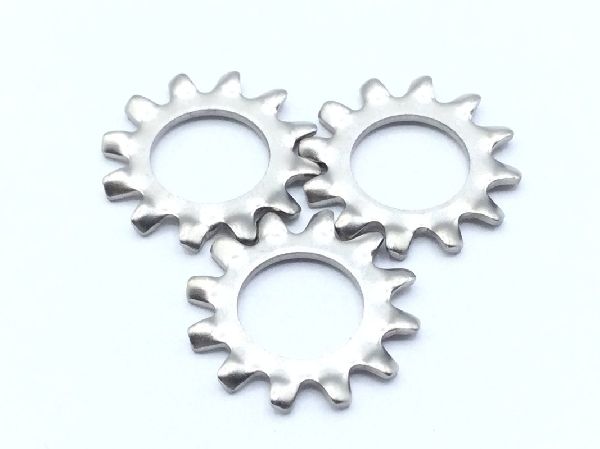

The MS35335-61 is a military standard external tooth lock washer from QPL. Constructed from steel (comp 410 III) with a passivate surface treatment conforming to QQ-P-35 federal specification, this washer is designed for secure fastening applications.
Key mechanical specifications include a hole diameter ranging from 0.256 to 0.267 inches and an outside diameter between 0.494 and 0.510 inches. The material thickness is between 0.023 and 0.028 inches, with a hardness rating of 40.0 to 50.0 Rockwell C. This washer is specifically noted for its use in MRAP vehicles, such as the Cougar.
Packaged in increments of 100, the MS35335-61 is suitable for various industrial and military applications requiring reliable locking functionality. Its robust construction and specific material and treatment ensure performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hole diameter ranges from 0.256 to 0.267 inches.
The outside diameter is between 0.494 and 0.510 inches.
The material thickness is between 0.023 and 0.028 inches.
The hardness rating is between 40.0 and 50.0 Rockwell C.
It features flat external teeth.
It is made from Steel comp 410 III.
The surface treatment is Passivate, conforming to QQ-P-35 federal specification.
