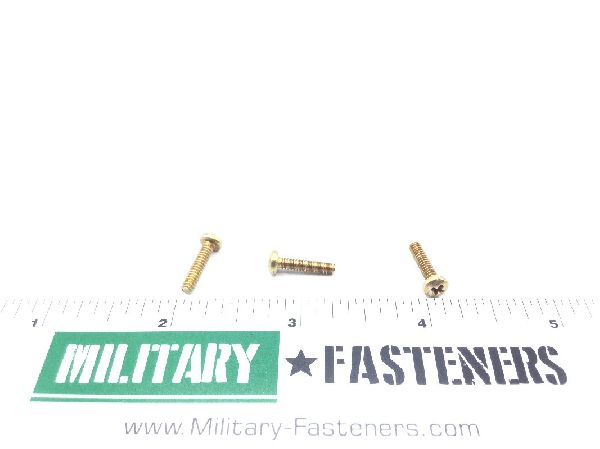

MS35206-217 The QPL MS35206-217 is a pan head machine screw made of cadmium plated steel. It features a 4-40 thread size and a length of 0.5 inches.
Mfr Part #:

MS35206-217

Available from 1 distributors
Mfr Name: QPL
QPL
The QPL MS35206-217 is a pan head machine screw made of cadmium plated steel. It features a 4-40 thread size and a length of 0.5 inches.
✓ Total Stock: 600 pcs
$ Price Range: $0.99

MS35206-217 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MS35206-217 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Head Style
SVHC Present
Thread Size
View Similar Products (0)

MS35206-217 Description

Short technical summary and product information.

This MS35206-217 machine screw from QPL is manufactured from carbon steel and features a cadmium and chromate plating for corrosion resistance, meeting Federal Standard #66 and Specification QQ-P-416, Type 2, Class 3. It has a pan head style with a cross recess type 1 drive.



The screw has a thread size of 4-40 UNC (coarse thread) with a thread diameter of 0.112 inches and a thread class of 2a. The fastener length is 0.5 inches, with a thread length between 0.450 and 0.500 inches. The minimum tensile strength is 55,000 psi.



This component is supplied in a standard package quantity of 100 units. It is suitable for applications requiring reliable mechanical fastening with specific material and plating requirements.

MS35206-217 Quick Information

Product Type: Machine Screw
Series: MS35206
Canonical Name: MS35206-217 Pan Head Machine Screw
Subcategory: Machine Screw

MS35206-217 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MS35206-217 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS35206-217 Features

  • Pan head machine screw with cross recess drive.
  • 4-40 UNC thread size, 0.5 inch length.
  • Cadmium plated carbon steel construction.
  • Minimum tensile strength of 55,000 psi.
  • Meets Federal Standard #66 and QQ-P-416.

MS35206-217 Applications

  • Used in general mechanical assemblies.
  • Suitable for electronic equipment mounting.
  • Applications requiring corrosion resistance.
  • Fastening components in industrial settings.

MS35206-217 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the thread size of the MS35206-217 machine screw?

The thread size is 4-40 UNC.

What is the length of the MS35206-217 machine screw?

The fastener length is 0.5 inches.

What is the head style of the MS35206-217 machine screw?

The head style is Pan Head.

What material is the MS35206-217 machine screw made of?

The screw material is steel.

What is the minimum tensile strength of the MS35206-217 machine screw?

The minimum tensile strength is 55,000 psi.

What is the surface treatment of the MS35206-217 machine screw?

The surface treatment is Cadmium and chromate.
