Mfr Part #:

MS35059-31

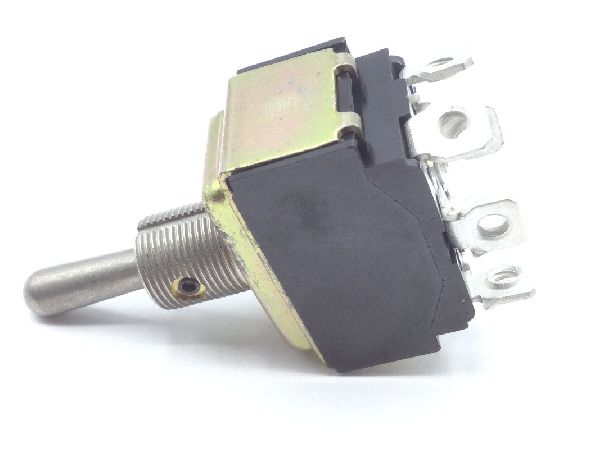

The Military Spec MS35059-31 is a toggle switch featuring a 2-pole double-throw contact arrangement with maintained positions. It is rated for 20A DC and 10A AC at its maximum voltage.

✓ Total Stock: 4 pcs

$ Price Range: $1.20

MS35059-31 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MS35059-31 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Military Spec
Actuator Style	Round
Military Grade	Yes
Mounting Type	Bushing mount
SVHC Present	Not Present
Termination Style	Screw terminal

View Similar Products (0)

MS35059-31 Description

Short technical summary and product information.

The MS35059-31 from Military Spec is a robust toggle switch designed for reliable operation. It features a 2-pole, double-throw contact arrangement where both positions are maintained, ensuring consistent circuit control.

This switch is rated for a maximum voltage of 115V AC and 28V DC, with a contact load current rating of 20A resistive DC and 10A resistive AC. The terminals are of the screw type, with 6 tabs available for secure connections.

Mechanically, the MS35059-31 has a bushing mount style with a bushing length of 0.469 inches. The main body dimensions are 1.328 inches in length, 0.766 inches in width, and 1.062 inches in height. It features a round actuator with a height of 0.469 inches.

The enclosure is fully enclosed, providing protection against environmental factors. This toggle switch is suitable for applications requiring dependable switching under moderate to heavy loads.

MS35059-31 Quick Information

Product Type: Toggle Switch

Series: MS35059

Canonical Name: MS35059-31 Toggle Switch

Subcategory: Toggle Switch

MS35059-31 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MS35059-31 Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MS35059-31 Features

2-pole, double-throw maintained toggle switch.
Rated for 20A DC and 10A AC loads.
Supports 115V AC and 28V DC operation.
Features secure screw terminals for connection.
Bushing mount design for panel installation.

MS35059-31 Applications

Ideal for control panel switching.
Suitable for power distribution circuits.
Used in industrial equipment applications.
Applicable in moderate to heavy load switching.

MS35059-31 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating for the MS35059-31 toggle switch?

The MS35059-31 toggle switch has a contact load current rating of 20.000 amperes resistive DC and 10.000 amperes resistive AC at maximum rated voltage.

What is the maximum voltage rating for the MS35059-31 toggle switch?

The maximum voltage rating for the MS35059-31 toggle switch is 115.0 V AC and 28.0 V DC.

What type of terminals does the MS35059-31 toggle switch use?

The MS35059-31 toggle switch uses 6 tab screw terminals.

What is the body style of the MS35059-31 toggle switch?

The MS35059-31 toggle switch has a bushing mount body style.

What is the contact arrangement of the MS35059-31 toggle switch?

The MS35059-31 toggle switch has a 2 pole, double throw, both positions maintained single switch unit contact arrangement.

What is the RoHS status of the MS35059-31 toggle switch?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MS35059-31 toggle switch?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
