| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Length | |
| Body Temperature at 100% Max Current | |
| Coating Lead Run Down | |
| Current | |
| Diameter | |
| Dissipation Constant | |
| Lead Diameter | |
| Lead Spacing | |
| Lead Style | |
| Max Rec. Energy Rating | |
| R @ 25°C | |
| R @ Current | |
| Resistance @ 50% Max Current | |
| Thermal Time Constant | |
| Thickness | |
| maximum_capacitance (Maximum @ 120 VAC) | |
| maximum_capacitance (Maximum @ 240 VAC) | |
| maximum_capacitance (Maximum @ 440 VAC) | |
| maximum_capacitance (Maximum @ 680 VAC) |

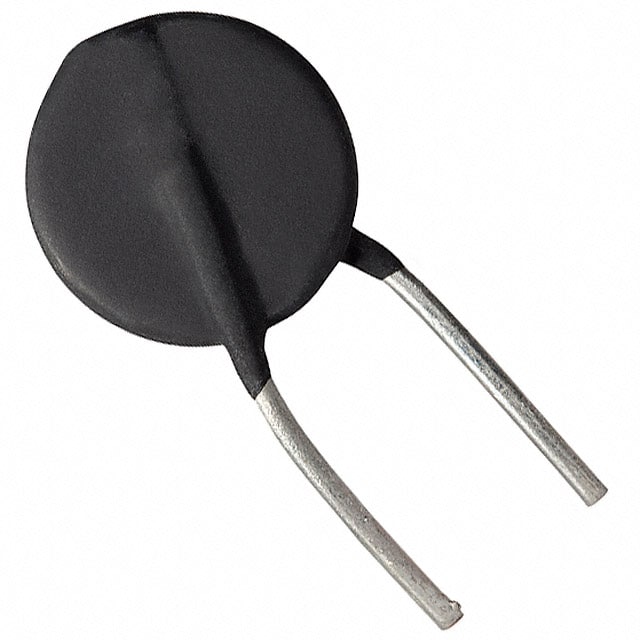

The MS35 20010 is a 20 Ohm inrush current limiter (ICL) manufactured by Ametherm Inc. It is designed to limit inrush current in power supply and AC line applications. The device has a steady state current rating of 10A up to 65°C and a maximum recommended energy rating of 1000J.
The ICL features a resistance of 20 Ω at 25°C, which drops to 100 mΩ at full rated current. It has a dissipation constant of 80 mW/°C and a thermal time constant of 65 seconds. The body temperature at 100% max current is 235°C.
Mechanically, the MS35 20010 comes in a radial leaded package with a diameter of 35mm, lead spacing of 19mm, and a thickness of 11mm. The lead diameter is 2.5mm and the body length is 40mm. The component has straight leads and a coating lead run down of 7mm.
This ICL is suitable for applications requiring high capacitance loads, with maximum capacitance ratings of 34,000 µF at 120 VAC, 8,683 µF at 240 VAC, 2,007 µF at 440 VAC, and 1,000 µF at 680 VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.89 | $20.89 |
| 5+ | $17.33 | $17.33 |
| 25+ | $14.37 | $14.37 |
| 50+ | $13.25 | $13.25 |
| 100+ | $12.21 | $12.21 |
| 250+ | $11.32 | $11.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 Ω.
10 A up to 65°C.
1000 J.
35 mm.
19 mm.
65 s.
34,000 µF.
